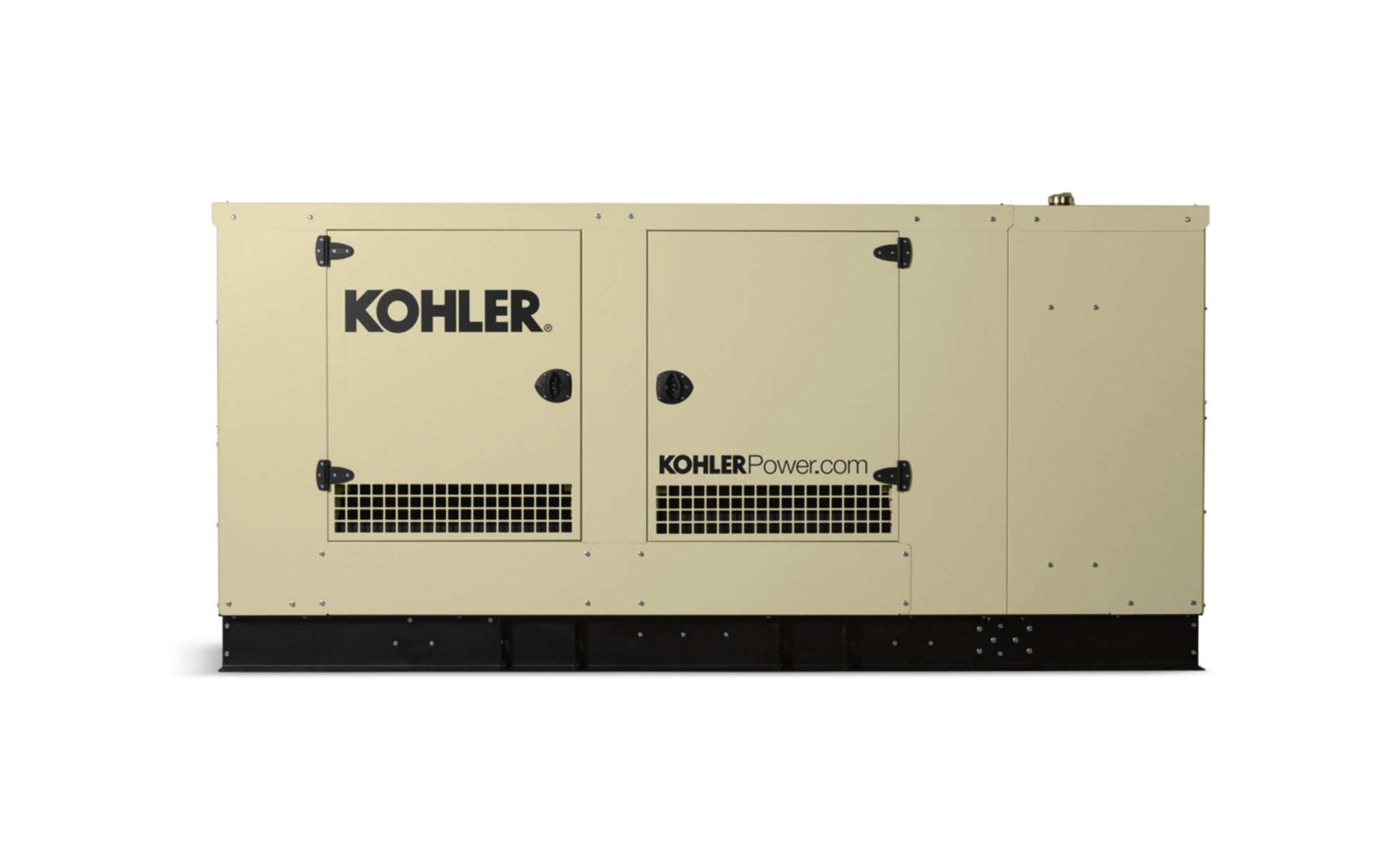

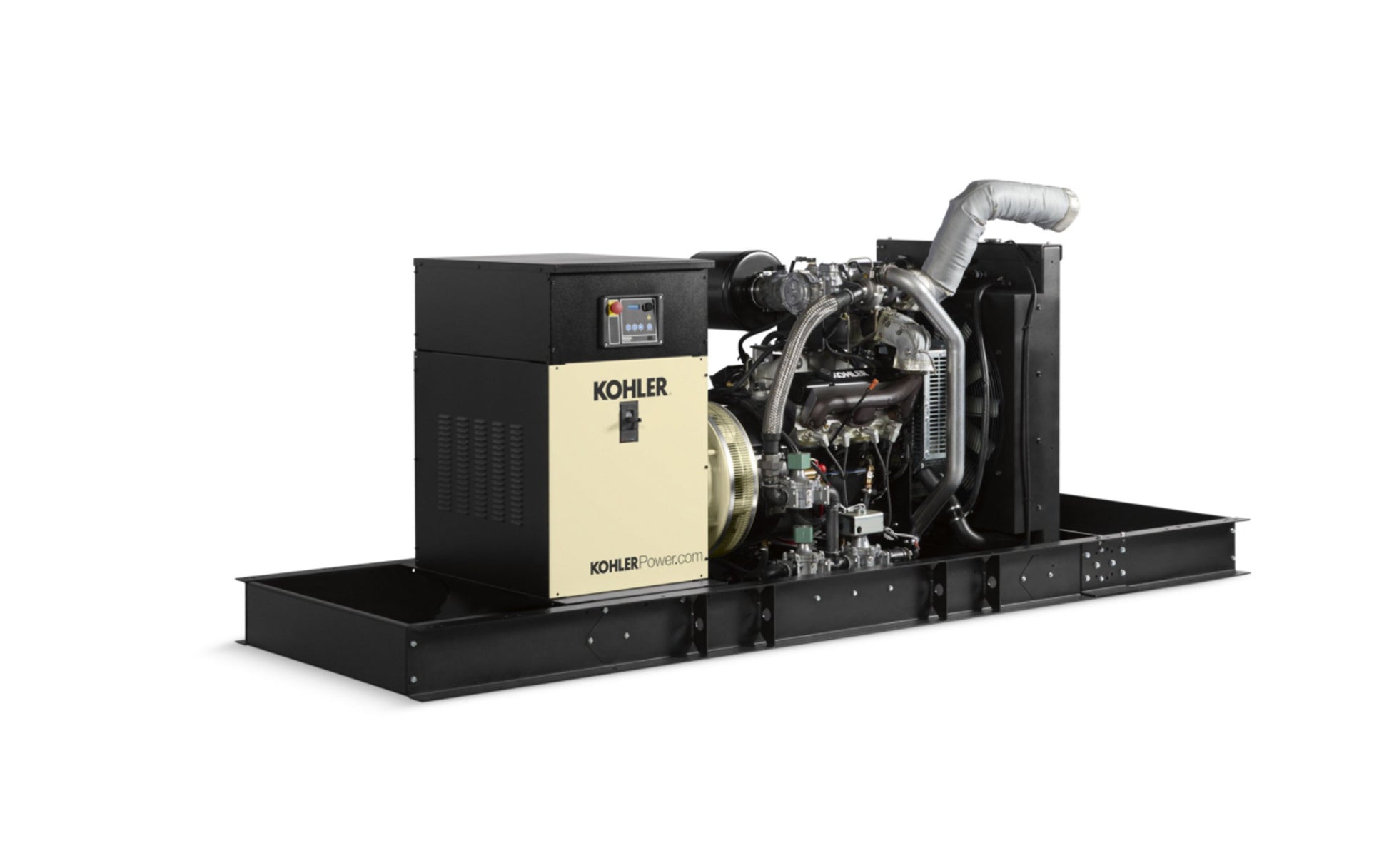

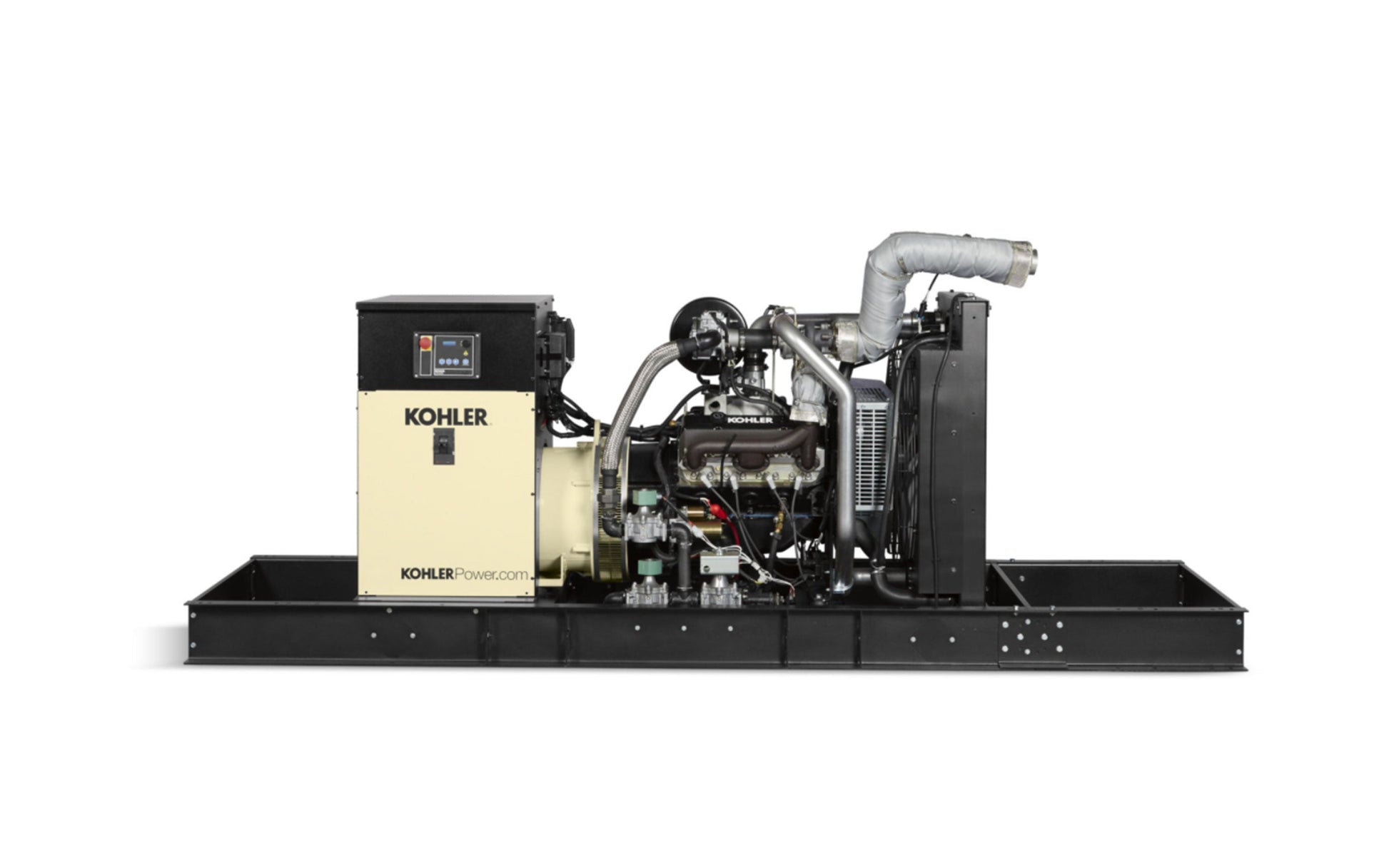

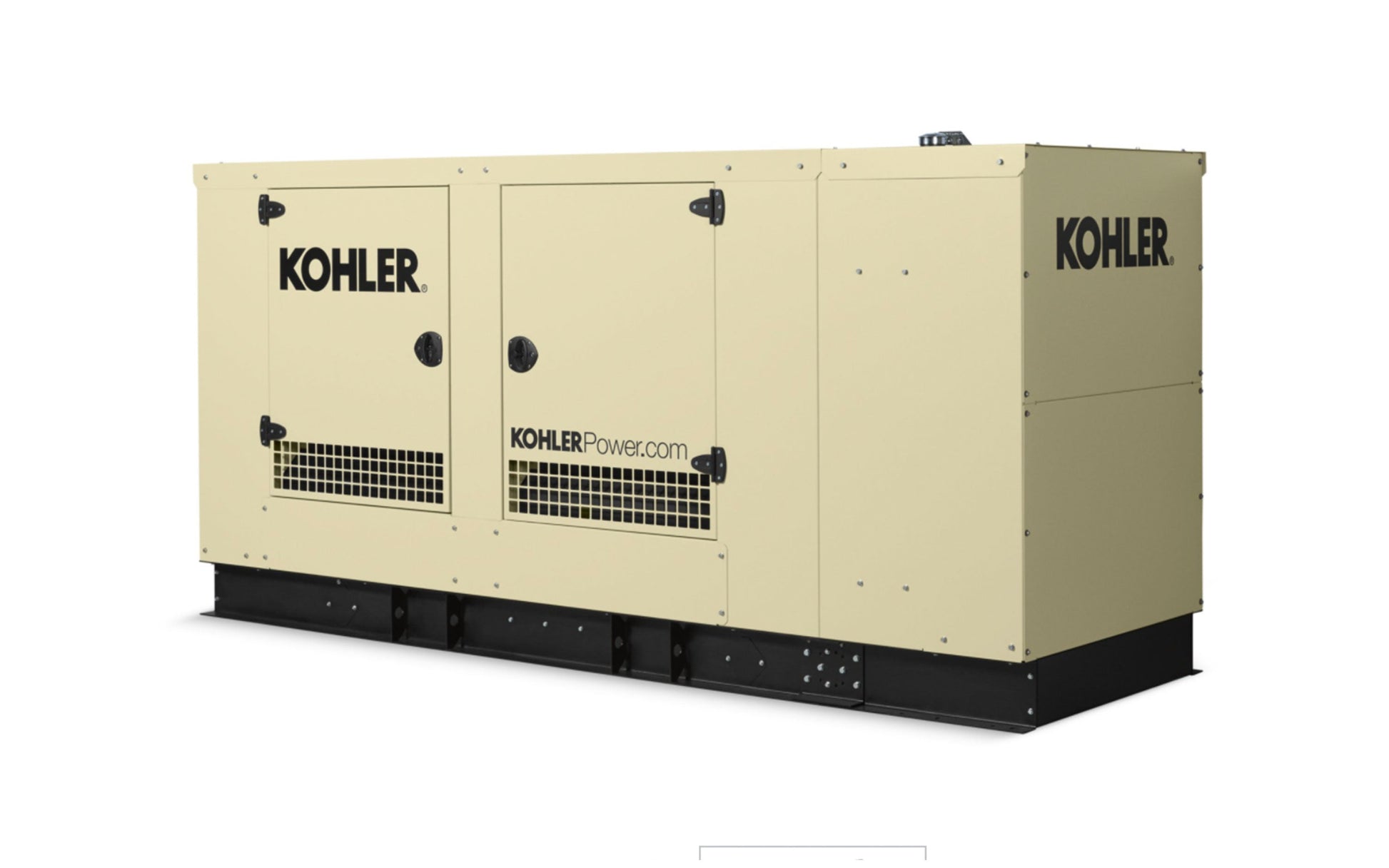

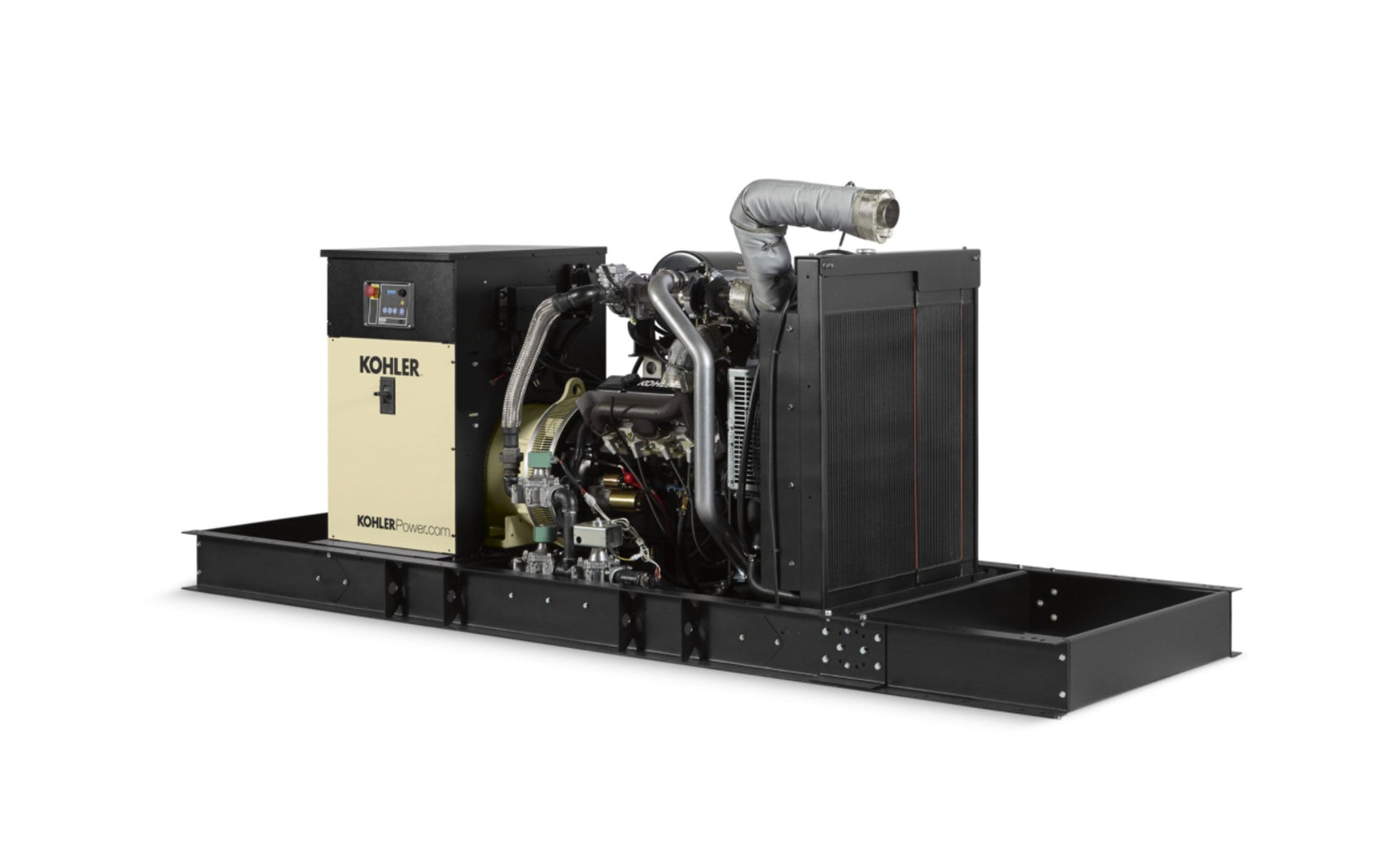

KG125, 60 Hz, Dual Fuel

KG125, 60 Hz, Dual Fuel

Fuel Type Dual Fuel
Certification US EPA (Certified) Stationary Emergency
Standby Range (kW/kVA) 78-100/78-125
Prime Range (kW/kVA) /
Frequency 60 Hz
Speed 1500 RPM
Alternator Type Brushless, Rare-Earth, Permanent-Magnet
Engine Manufacturer Kohler

Fill out my online form.
View full details

STANDARD FEATURES

  • KOHLER Co. provides one-source responsibility for the generating systems and accessories
  • The generator set and its components are prototype-tested, factory-built, and production-tested
  • The 60 Hz generator set offers a UL 2200 listing
  • CSA Approval is available
  • The 60 Hz generator set meets NFPA 110, Level 1, when equipped with the necessary accessories and installed per NFPA standards
  • The generator set accepts rated load in one step

OTHER FEATURES

  • Kohler designed controllers for one-source system integration and remote communication
  • The electronic, isochronous governor incorporates an integrated drive-by-wire throttle body actuator delivering precise frequency regulation
  • Winner of the 2020 Silver Product of the Year Award from Consulting-Specifying Engineer (CSE) magazine

ALTERNATOR FEATURES

  • Kohler's unique Fast-Response(TM) permanent magnet excitation system delivers excellent voltage response and short circuit capability
  • NEMA MG1, IEEE, and ANSI standards compliance for temperature rise and motor starting
  • Sustained short-circuit current of up to 300% of the rated current for up to 10 seconds and enables down stream circuit breakers to trip without collapsing the alternator field
  • Self-ventilated and drip proof construction
