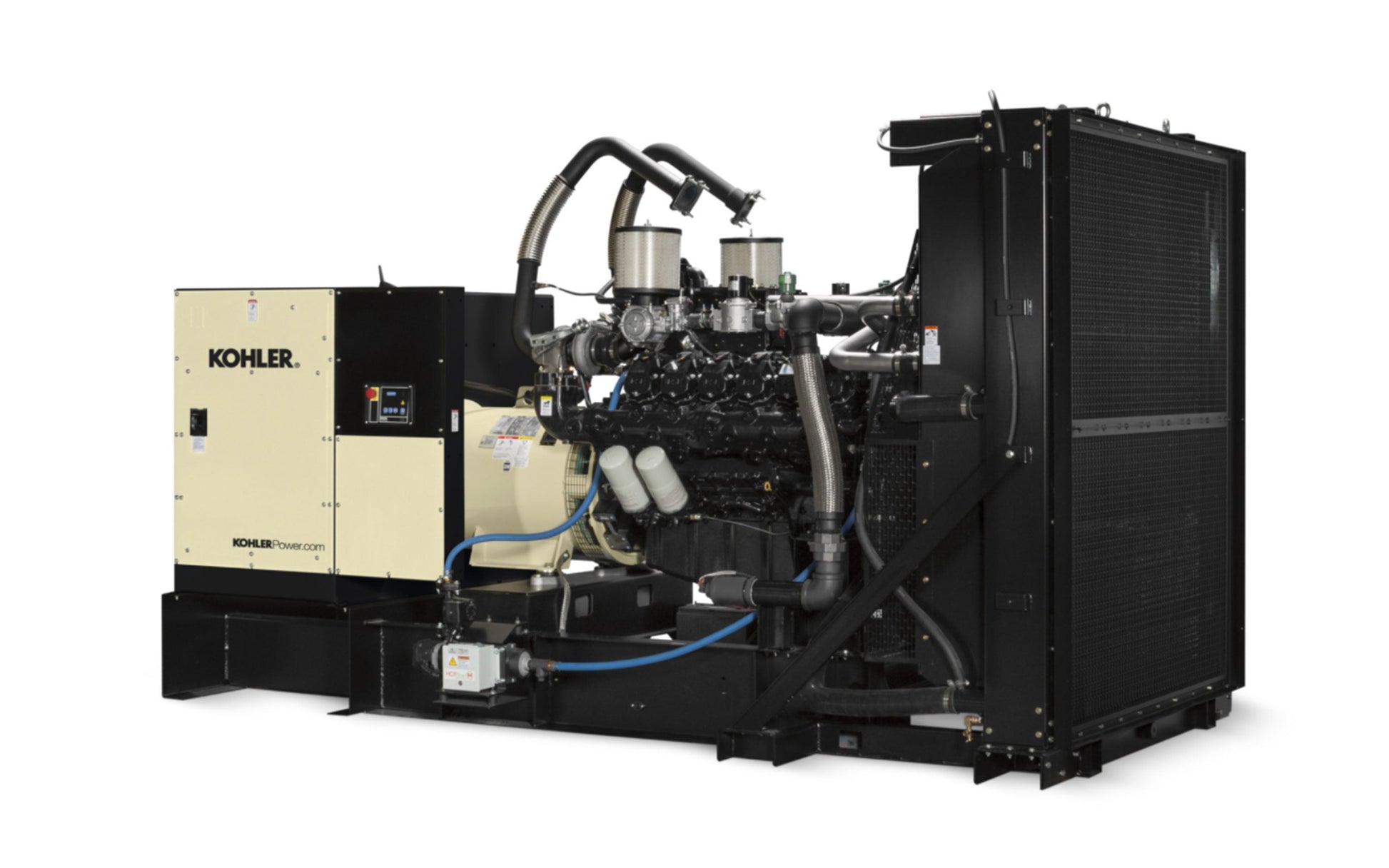

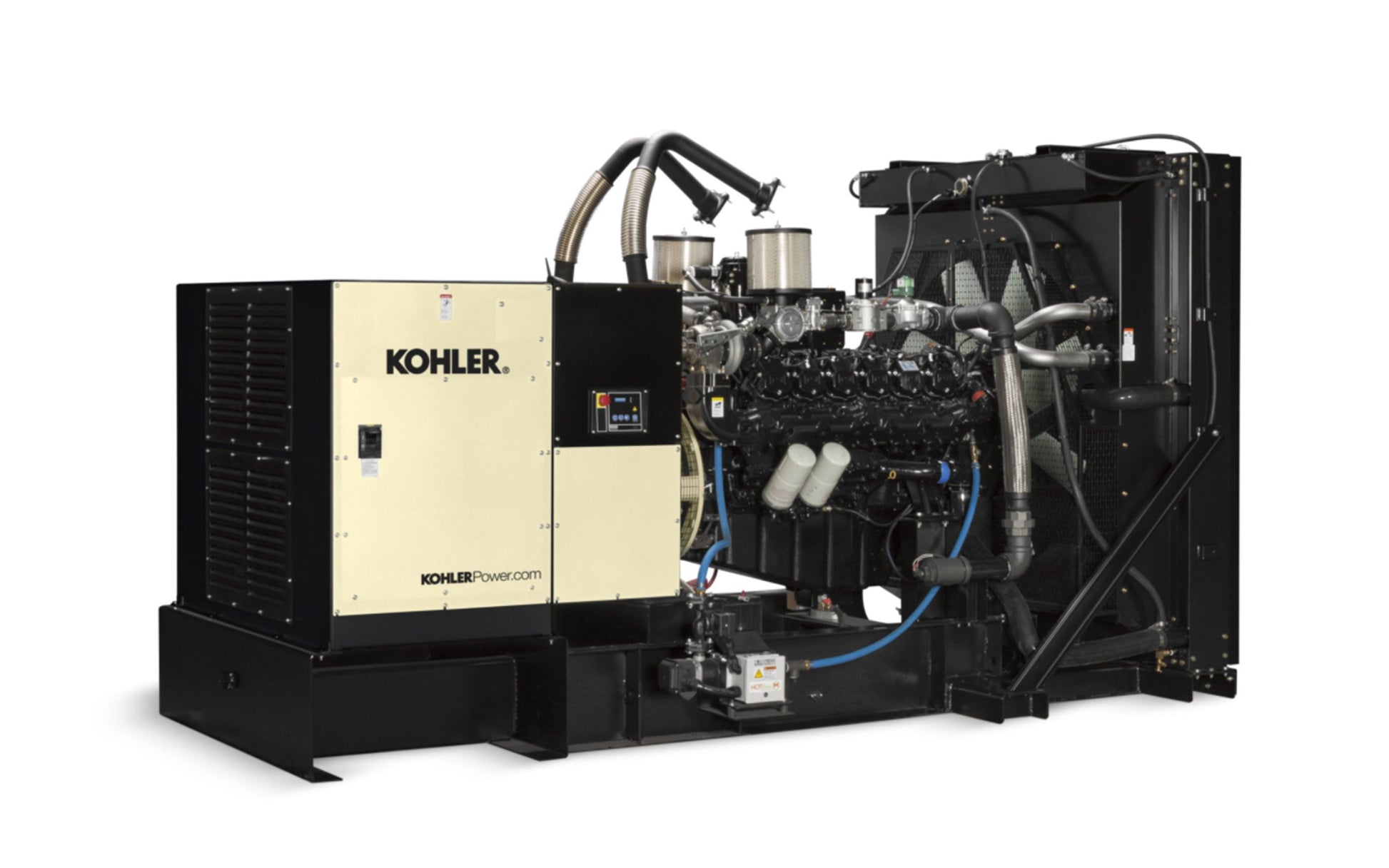

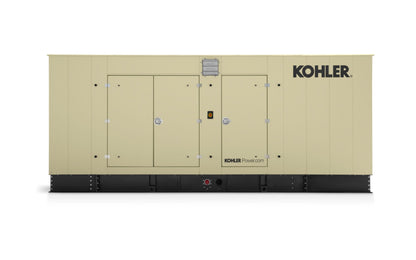

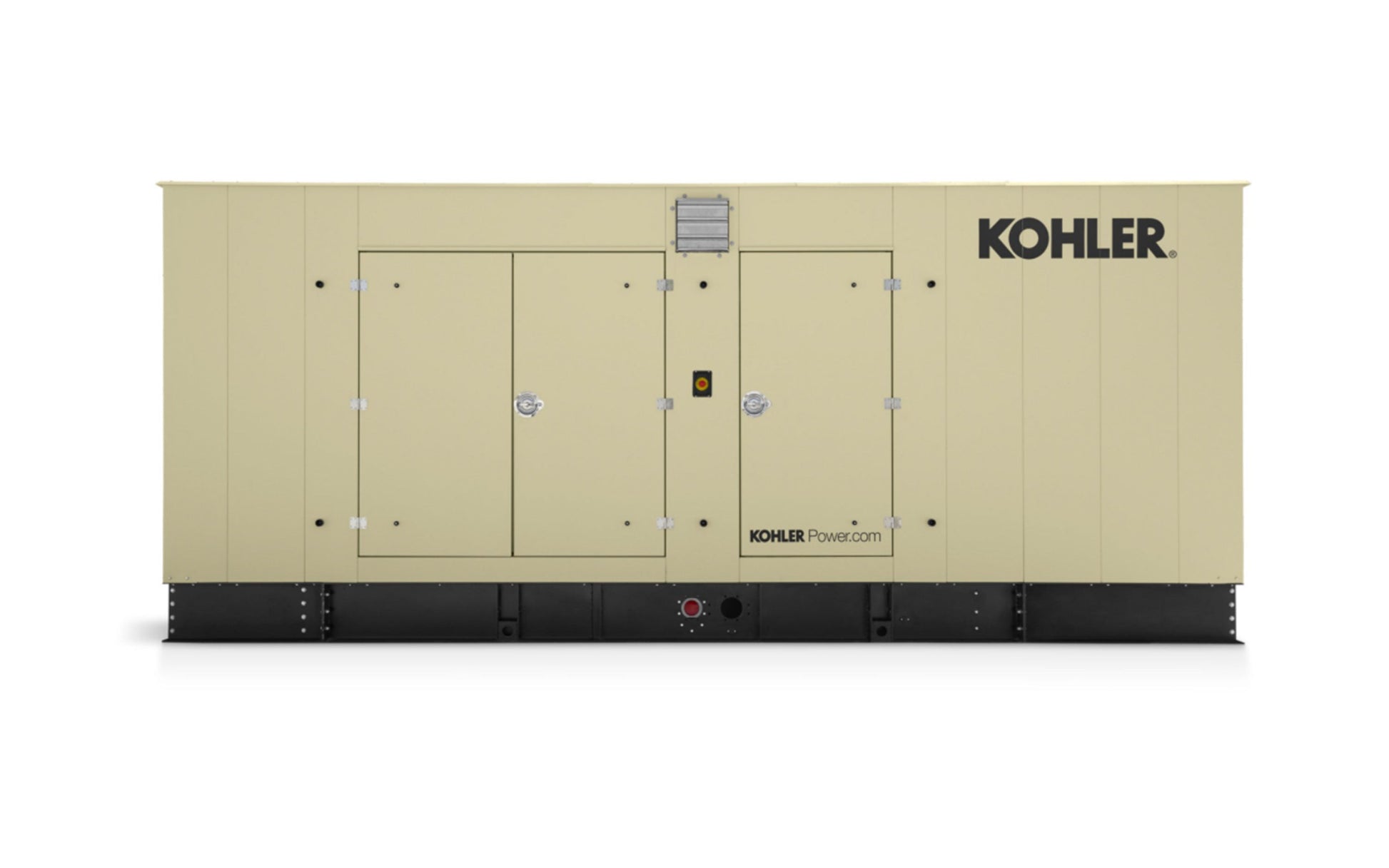

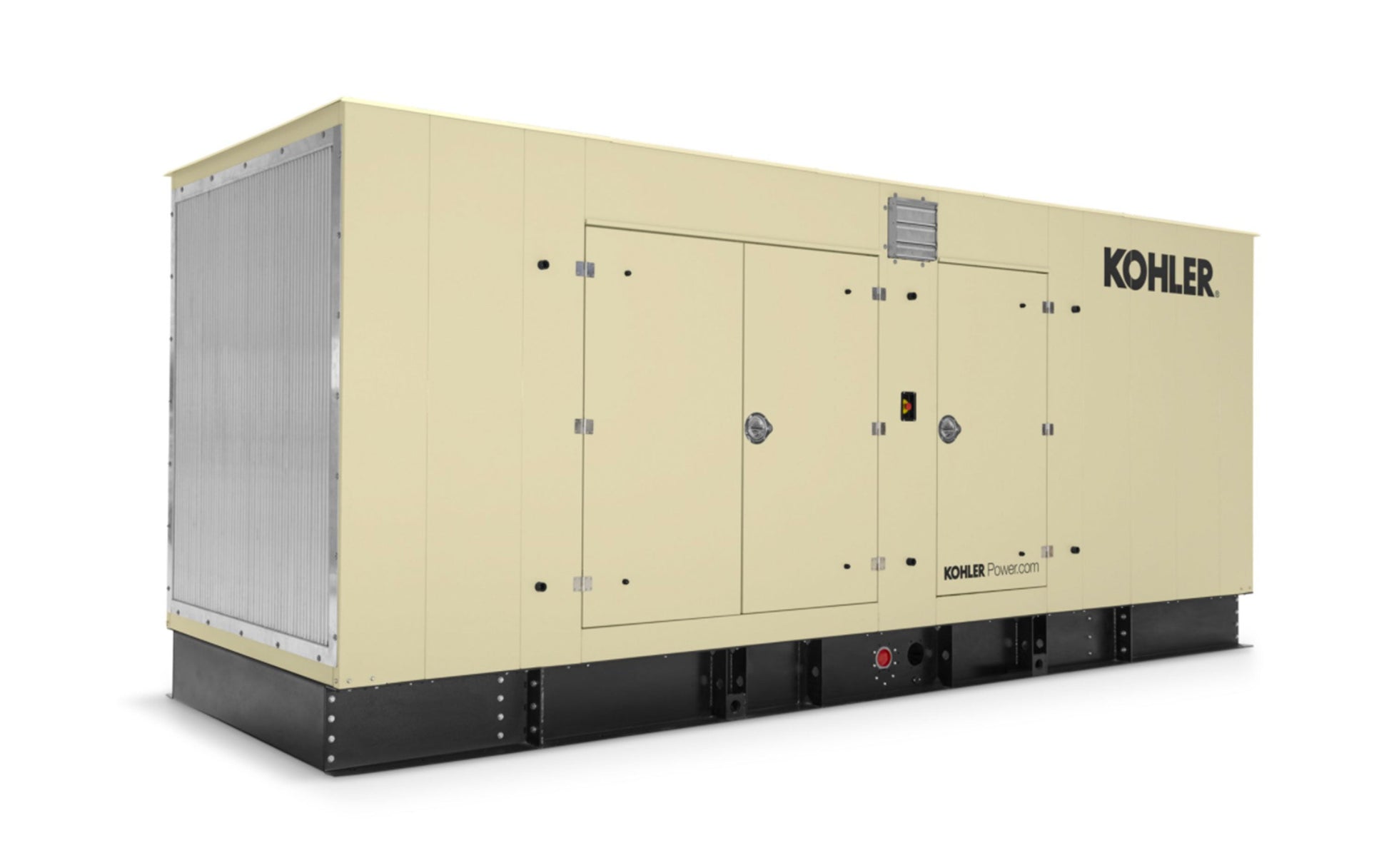

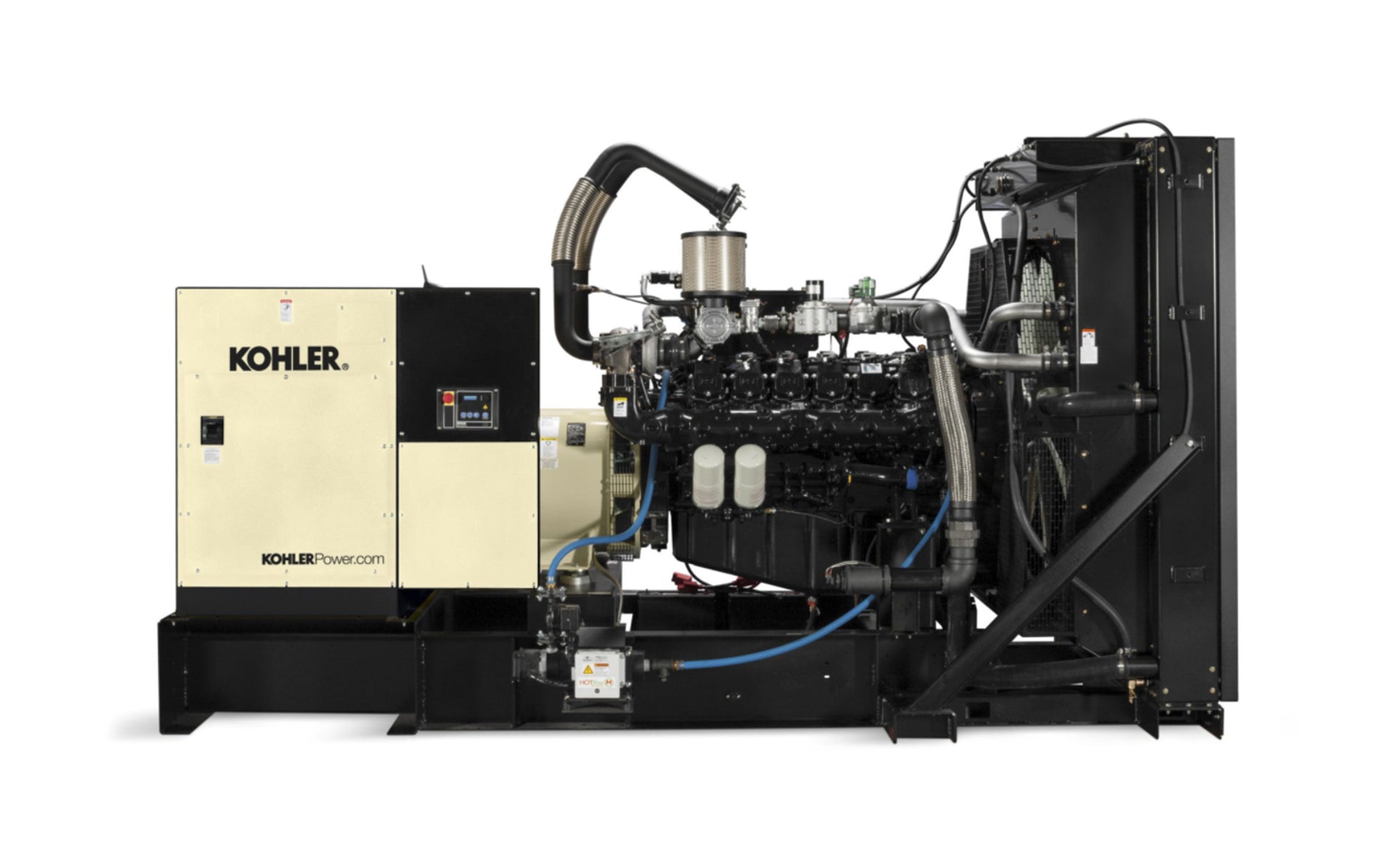

400RZXD, 50 Hz, Dual Fuel

400RZXD, 50 Hz, Dual Fuel

Fuel Type Dual Fuel
Certification Non-Certified
Standby Range (kW/kVA) 240-304/300-380
Prime Range (kW/kVA) 272/340
Frequency 50 Hz
Speed 1500 RPM
Alternator Type Brushless, Permanent-Magnet Pilot Exciter
Engine Manufacturer PSI/Doosan

Fill out my online form.
View full details

STANDARD FEATURES

  • KOHLER Co. provides one-source responsibility for the generating systems and accessories
  • The generator set and its components are prototype-tested, factory-built, and production-tested
  • A one-year limited warranty covers all systems and components. Two- and five-year extended limited warranties are also available
  • The generator set accepts rated load in one step

ALTERNATOR FEATURES

  • The pilot-excited, permanent-magnet (PM) alternator provides superior short-circuit capability
  • The brushless, rotating-field alternator has broad range reconnect ability
  • NEMA MG1, IEEE, and ANSI standards compliance for temperature rise and motor starting
  • Sustained short-circuit current of up to 300% of the rated current for up to 10 seconds and enables down stream circuit breakers to trip without collapsing the alternator field
  • Self-ventilated and dripproof construction
