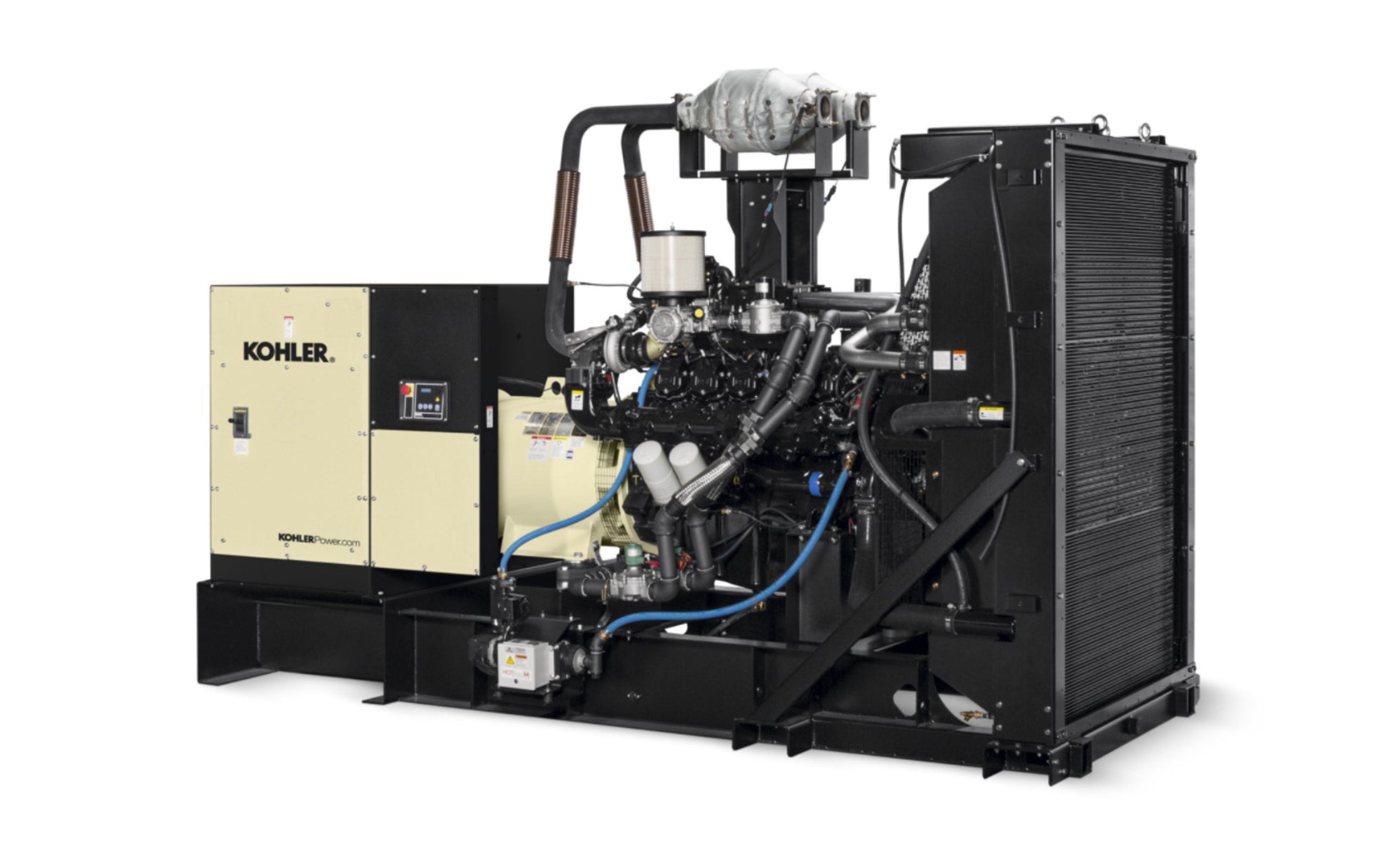

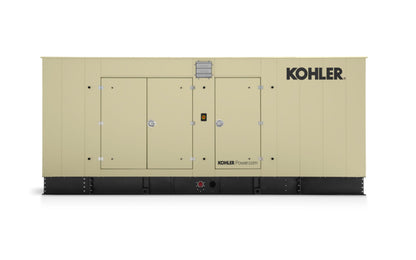

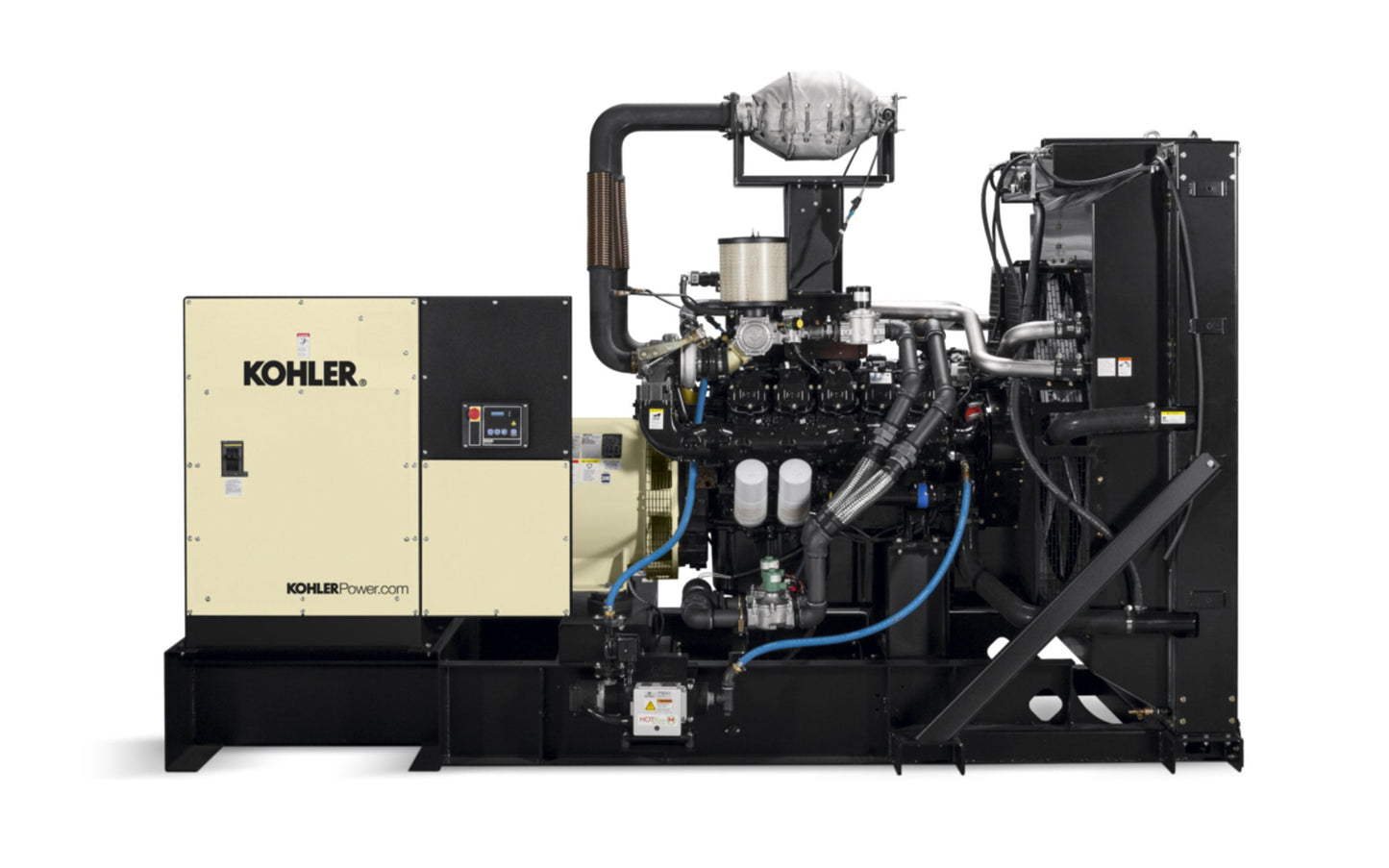

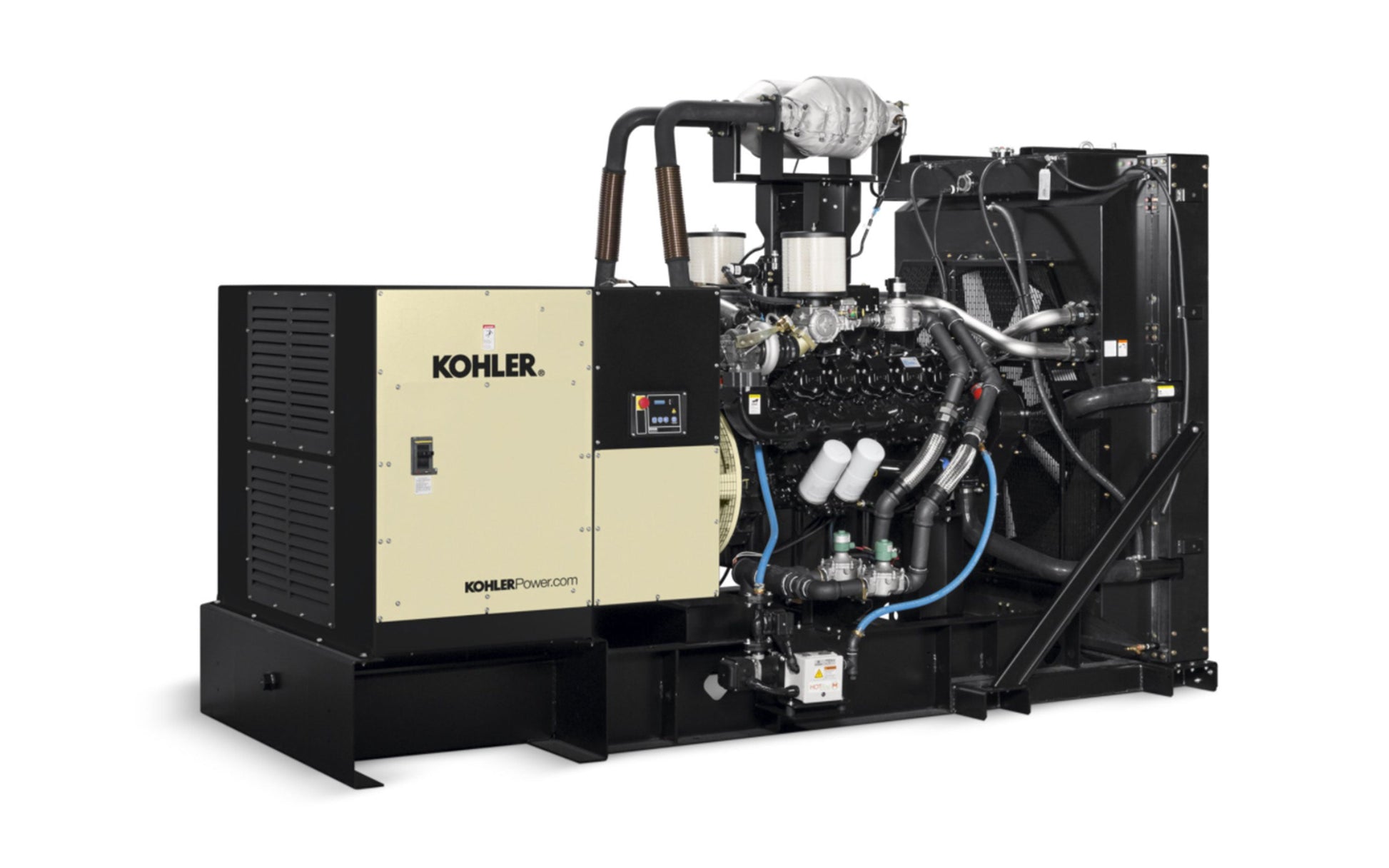

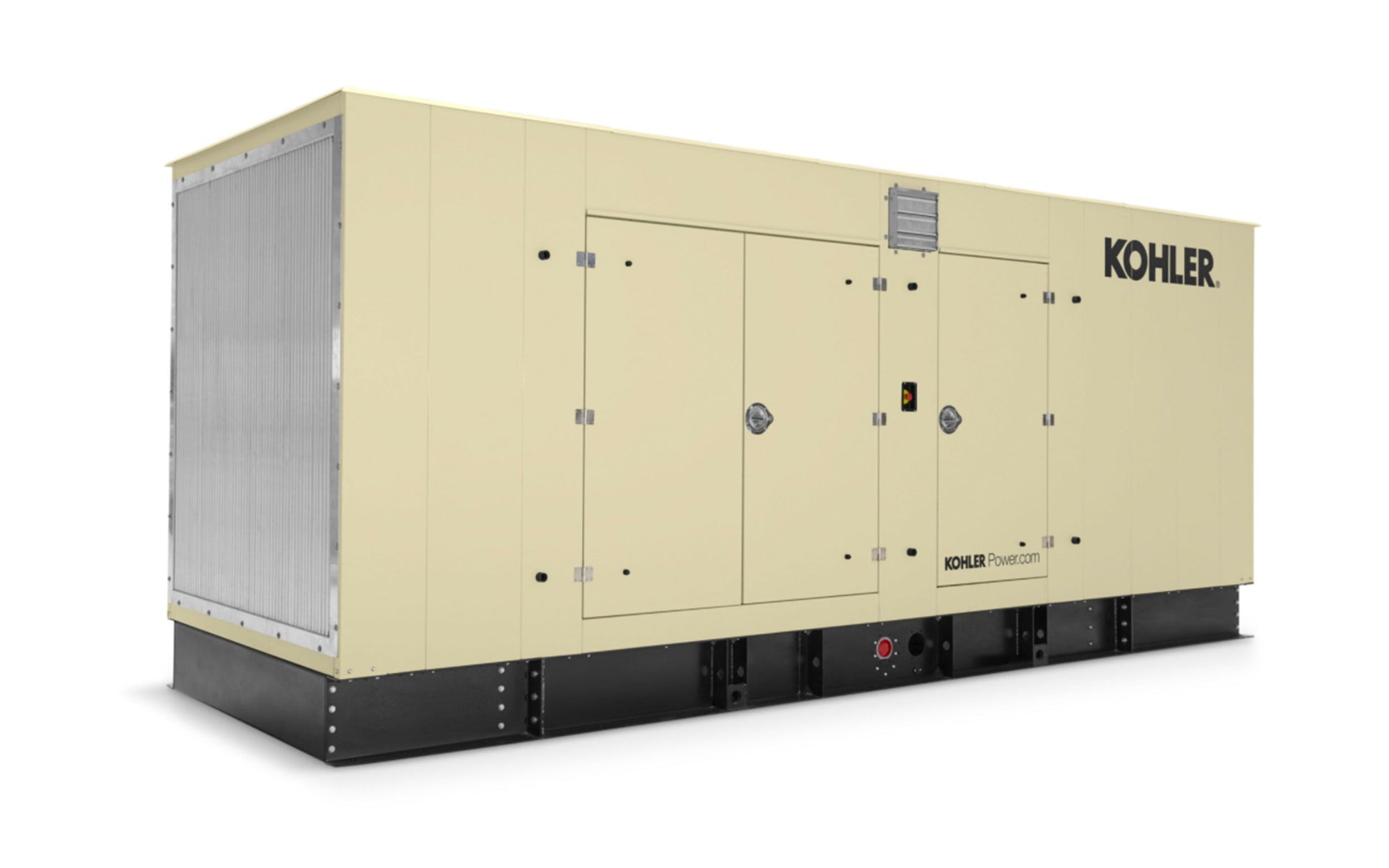

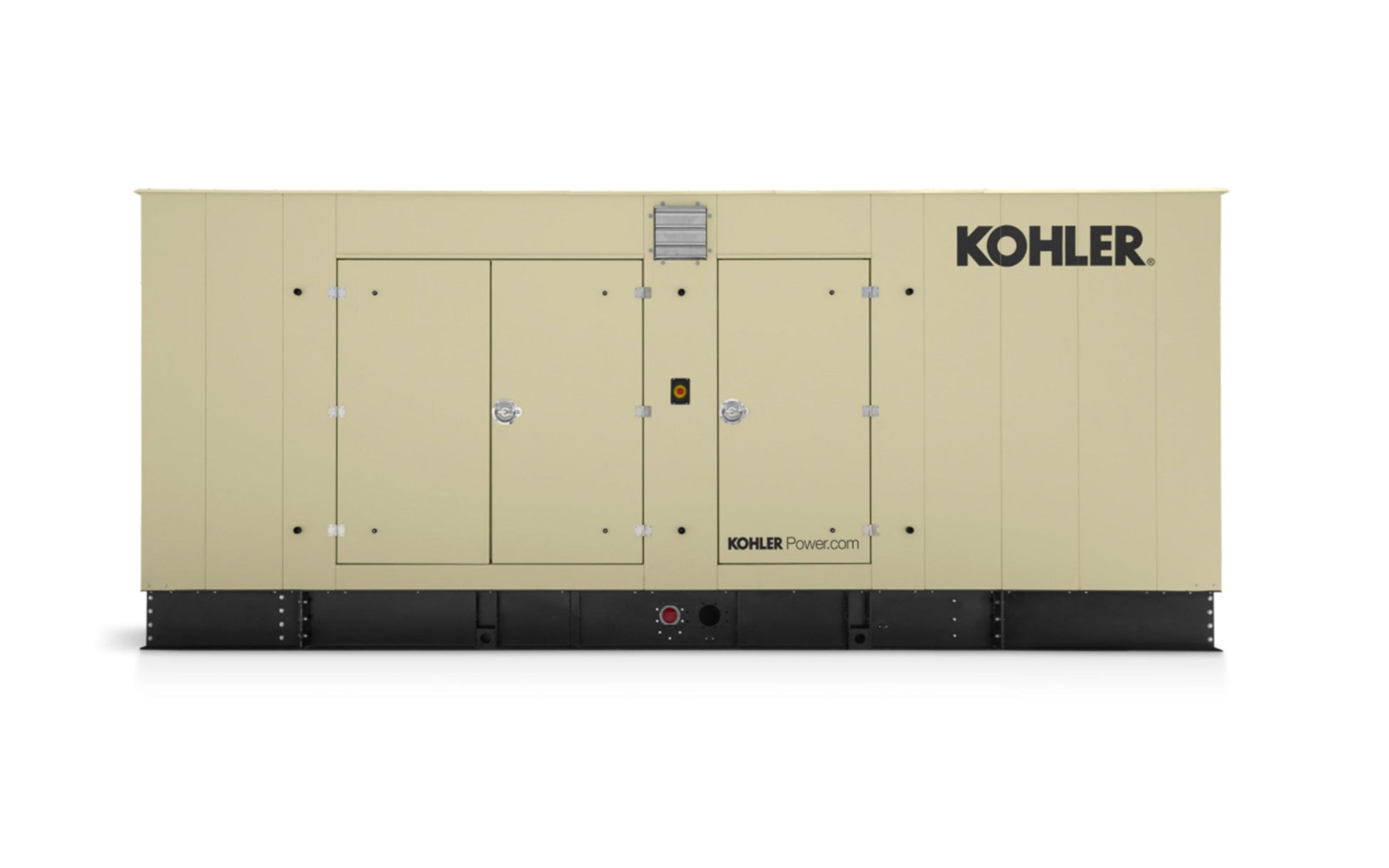

350RZXD, 60 Hz, Natural Gas

350RZXD, 60 Hz, Natural Gas

Fuel Type Natural Gas
Certification Non-Certified
Standby Range (kW/kVA) 200-290/250-362
Prime Range (kW/kVA) 252-264/315-330
Frequency 60 Hz
Speed 1500 RPM
Alternator Type Brushless, Permanent-Magnet Pilot Exciter
Engine Manufacturer PSI/Doosan

Fill out my online form.
View full details

STANDARD FEATURES

  • KOHLER Co. provides one-source responsibility for the generating systems and accessories
  • The generator set and its components are prototype-tested, factory-built, and production-tested
  • The 60 Hz generator set offers a UL 2200 listing
  • The 60 Hz generator set meets NFPA 110, Level 1, when equipped with the necessary accessories and installed per NFPA standards
  • A one-year limited warranty covers all systems and components. Two- and five-year extended limited warranties are also available
  • The generator set accepts rated load in one step

ALTERNATOR FEATURES

  • The pilot-excited, permanent-magnet (PM) alternator provides superior short-circuit capability
  • The brushless, rotating-field alternator has broad range reconnect ability
  • NEMA MG1, IEEE, and ANSI standards compliance for temperature rise and motor starting
  • Sustained short-circuit current of up to 300% of the rated current for up to 10 seconds and enables down stream circuit breakers to trip without collapsing the alternator field
  • Self-ventilated and dripproof construction
