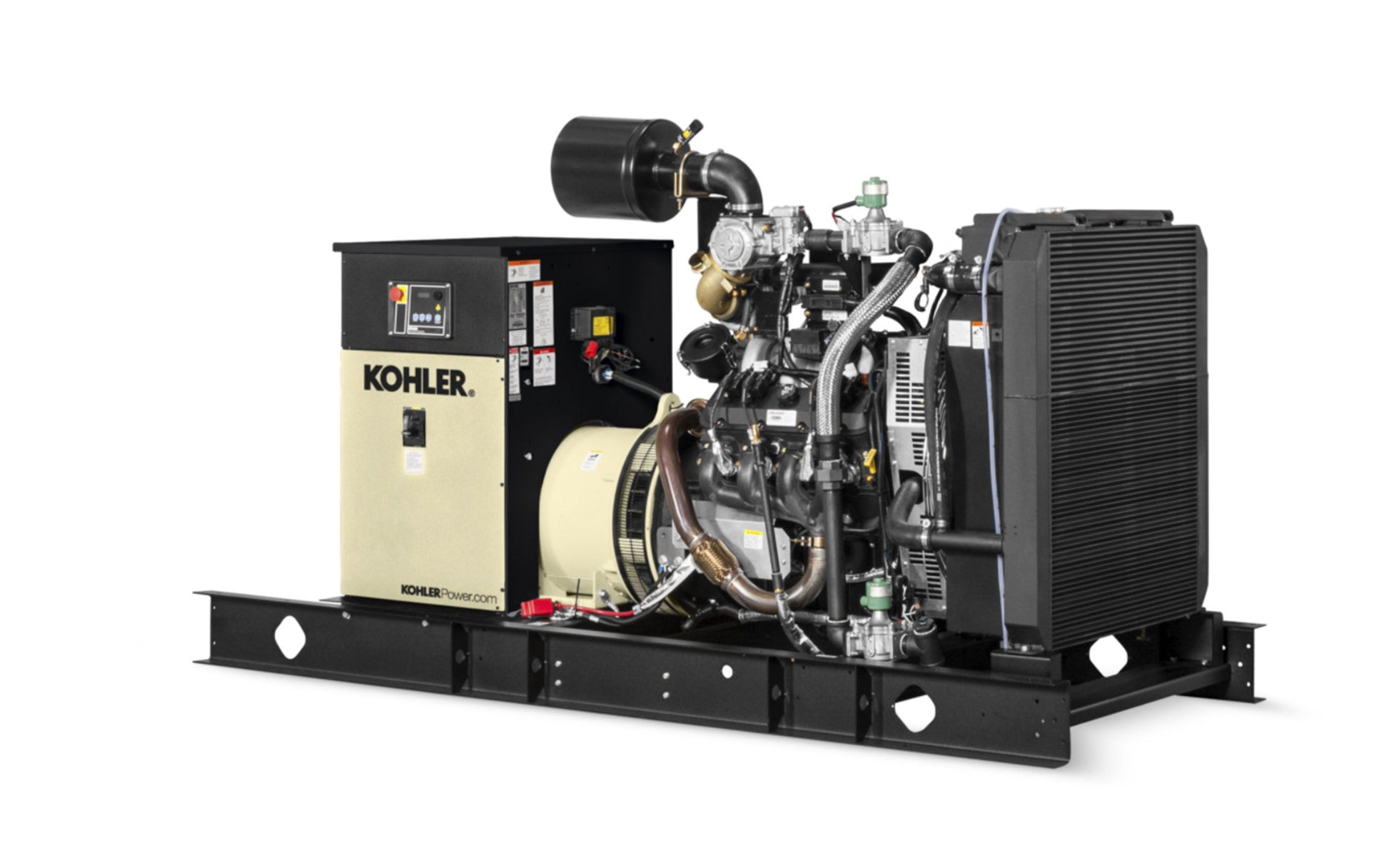

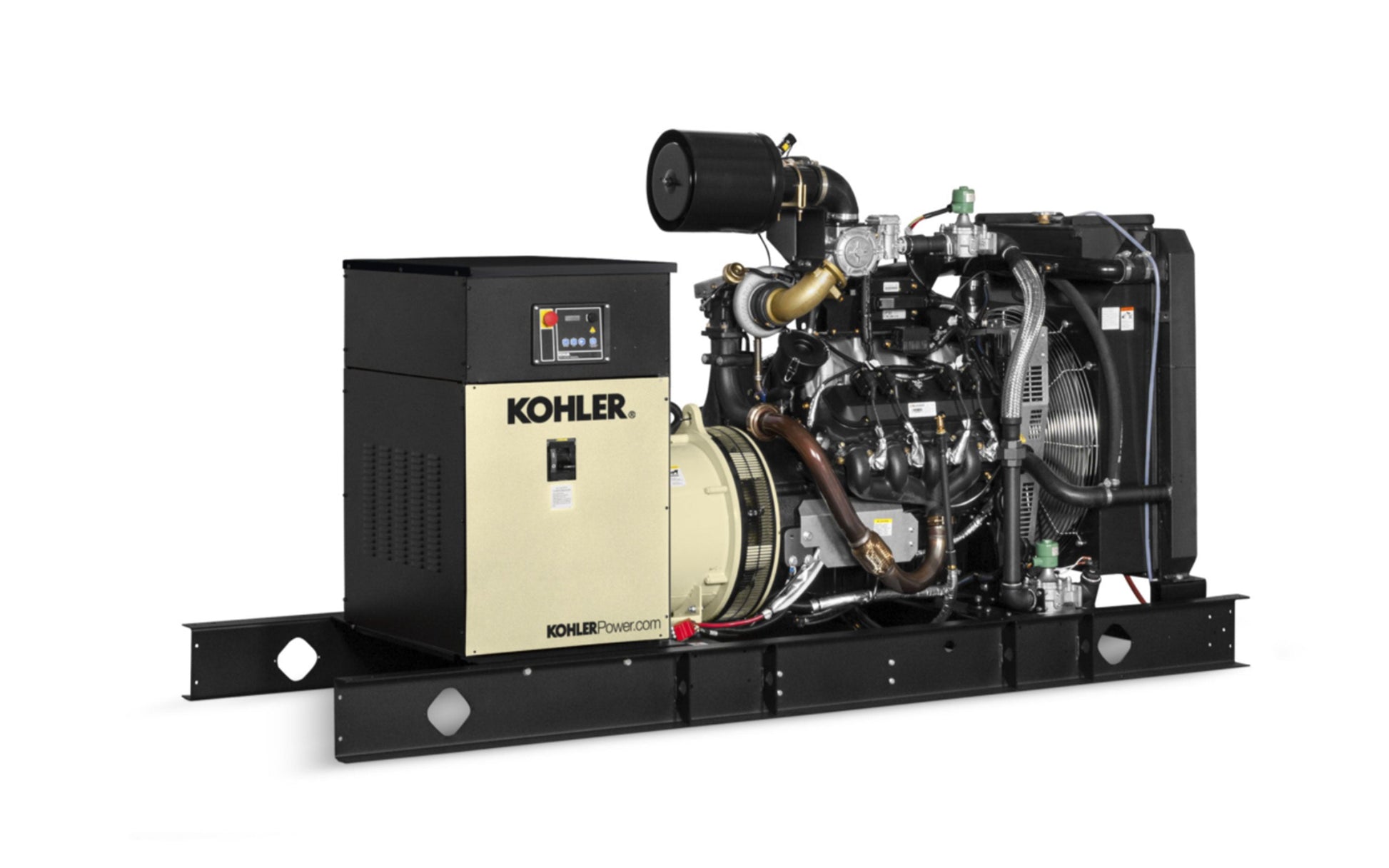

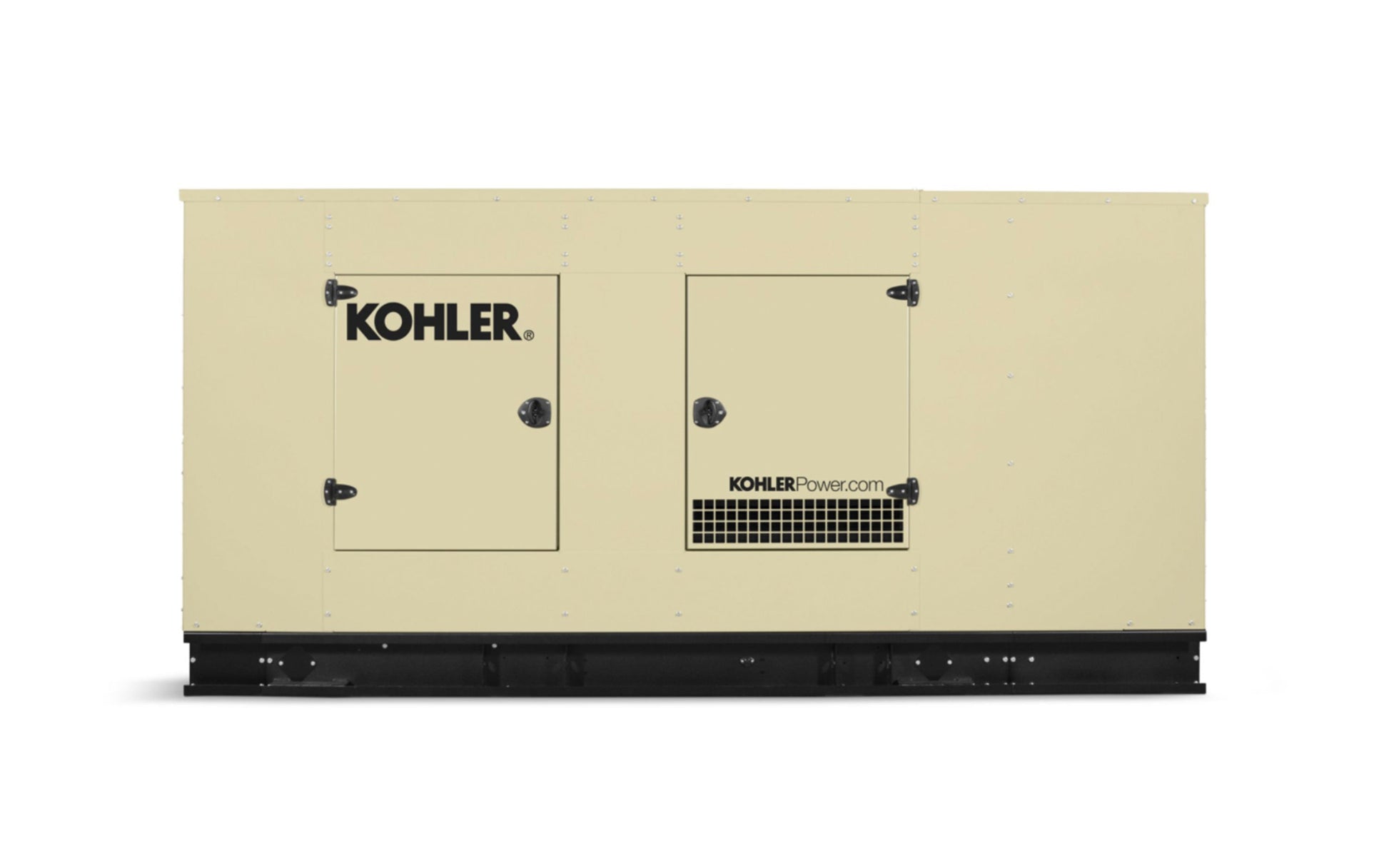

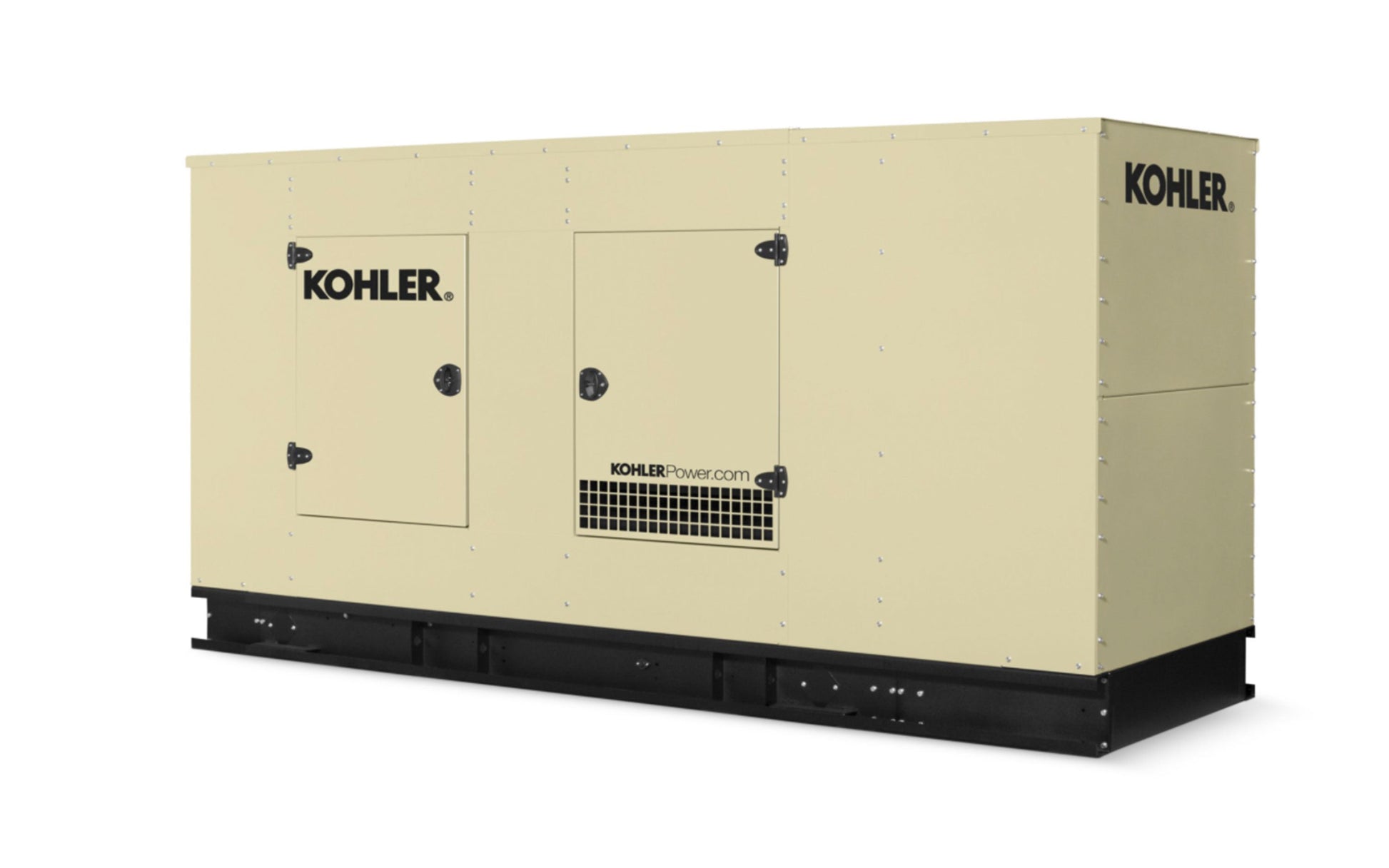

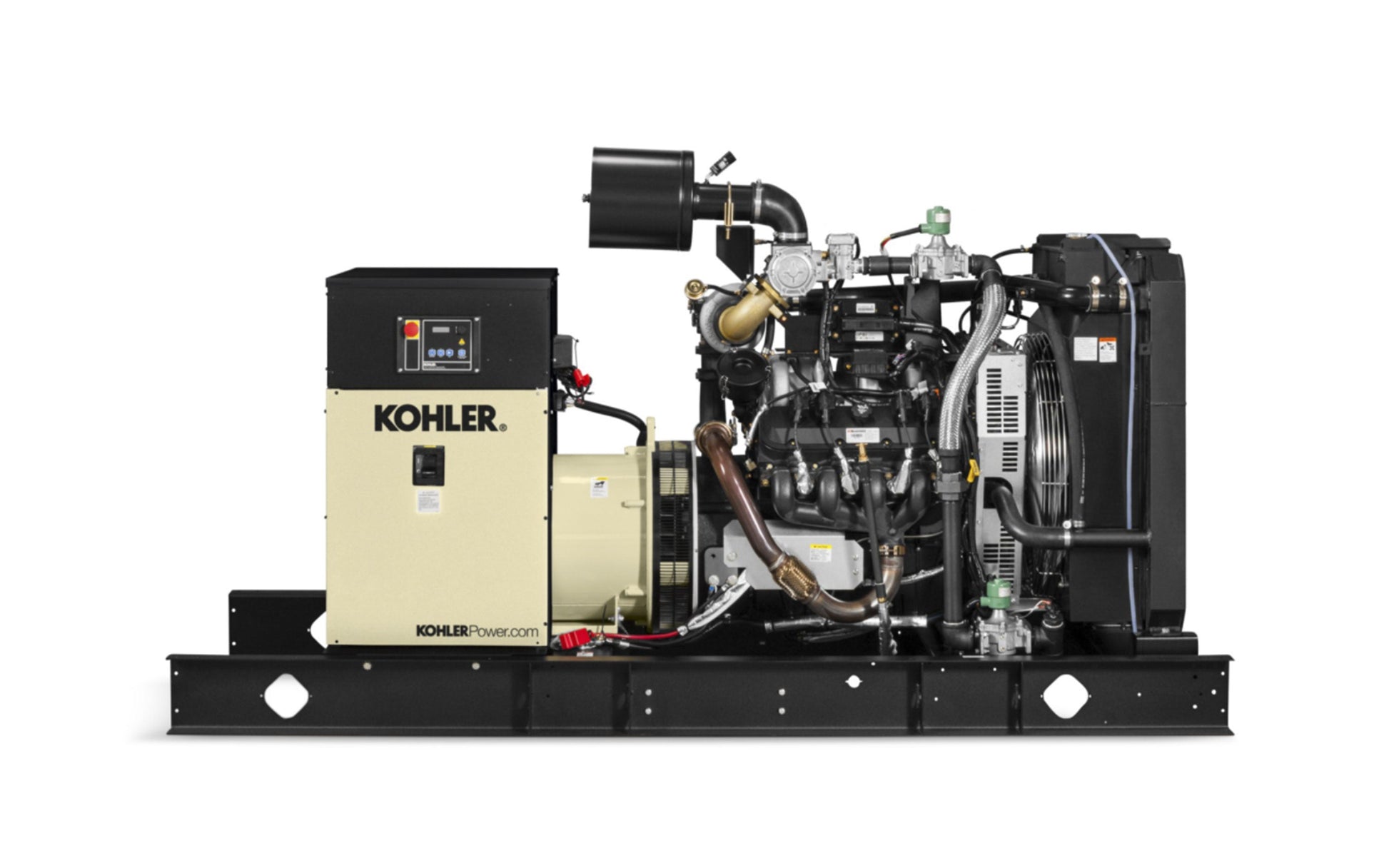

150RZGC, 60 Hz, Natural Gas

150RZGC, 60 Hz, Natural Gas

Fuel Type Natural Gas
Certification Non-Certified
Standby Range (kW/kVA) 91-135/91-169
Prime Range (kW/kVA) /
Frequency 60 Hz
Speed 1500 RPM
Alternator Type Brushless, Rare-Earth, Permanent-Magnet
Engine Manufacturer PSI

Fill out my online form.
View full details

STANDARD FEATURES

  • KOHLER Co. provides one-source responsibility for the generating systems and accessories
  • The generator set and its components are prototype-tested, factory-built, and production-tested
  • The 60 Hz generator set meets NFPA 110, Level 1, when equipped with the necessary accessories and installed per NFPA standards.
  • A one-year limited warranty covers all systems and components. Two- and five-year extended warranties are also available
  • The generator set accepts rated load in one step

OTHER FEATURES

  • Kohler designed controllers for guaranteed system integration and remote communication
  • The electronic, isochronous governor incorporates an integrated drive-by-wire throttle body actuator delivering precise frequency regulation

ALTERNATOR FEATURES

  • Kohler's unique Fast-Response(TM) permanent magnet excitation system delivers excellent voltage response and short circuit capability
  • NEMA MG1, IEEE, and ANSI standards compliance for temperature rise and motor starting
  • Sustained short-circuit current of up to 300% of the rated current for up to 10 seconds and enables down stream circuit breakers to trip without collapsing the alternator field
  • Self-ventilated and drip-proof construction
  • Vacuum-impregnated windings with fungus-resistant epoxy varnish for dependability and long life
  • Superior voltage waveform from a two-thirds pitch stator and skewed rotor
