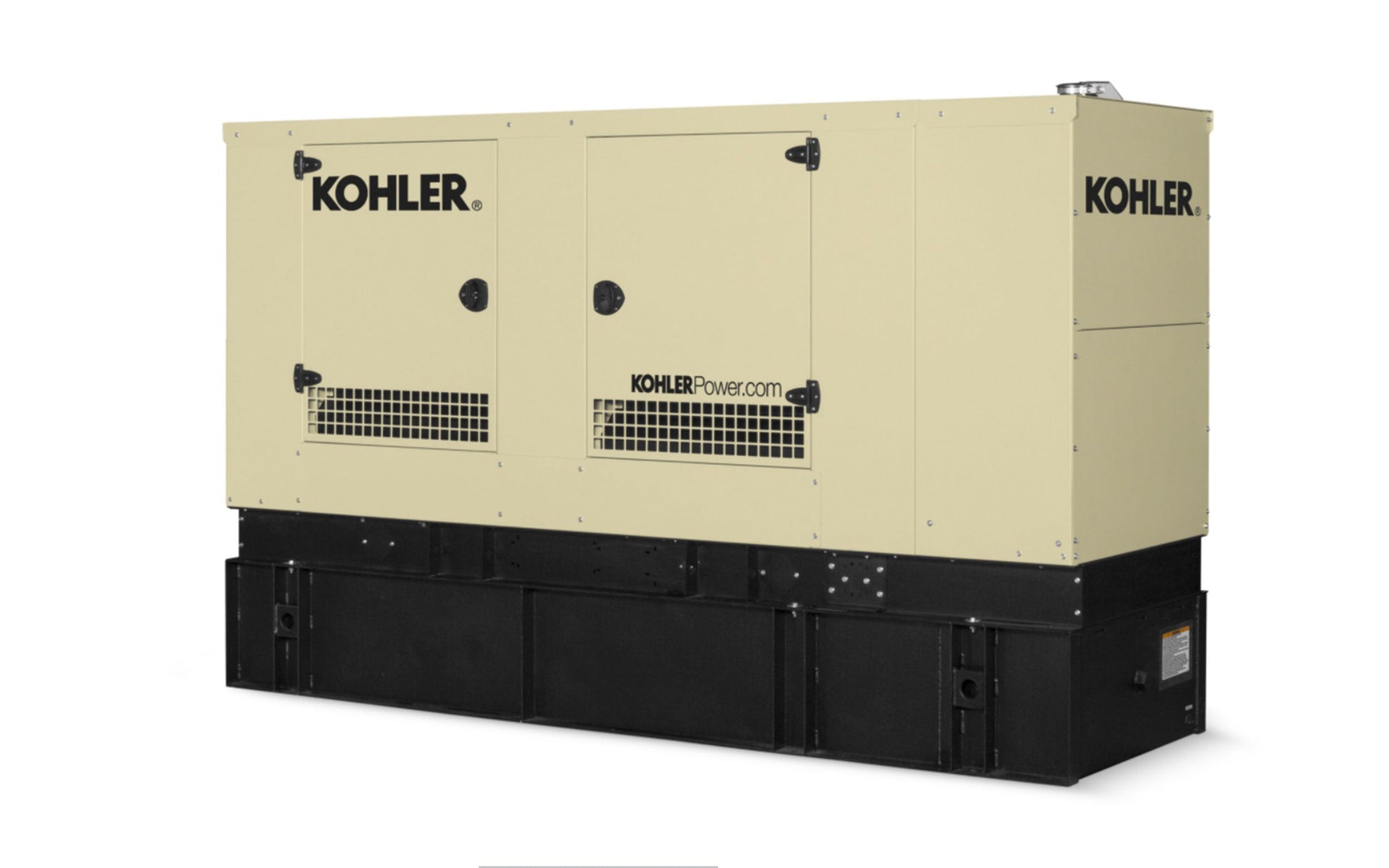

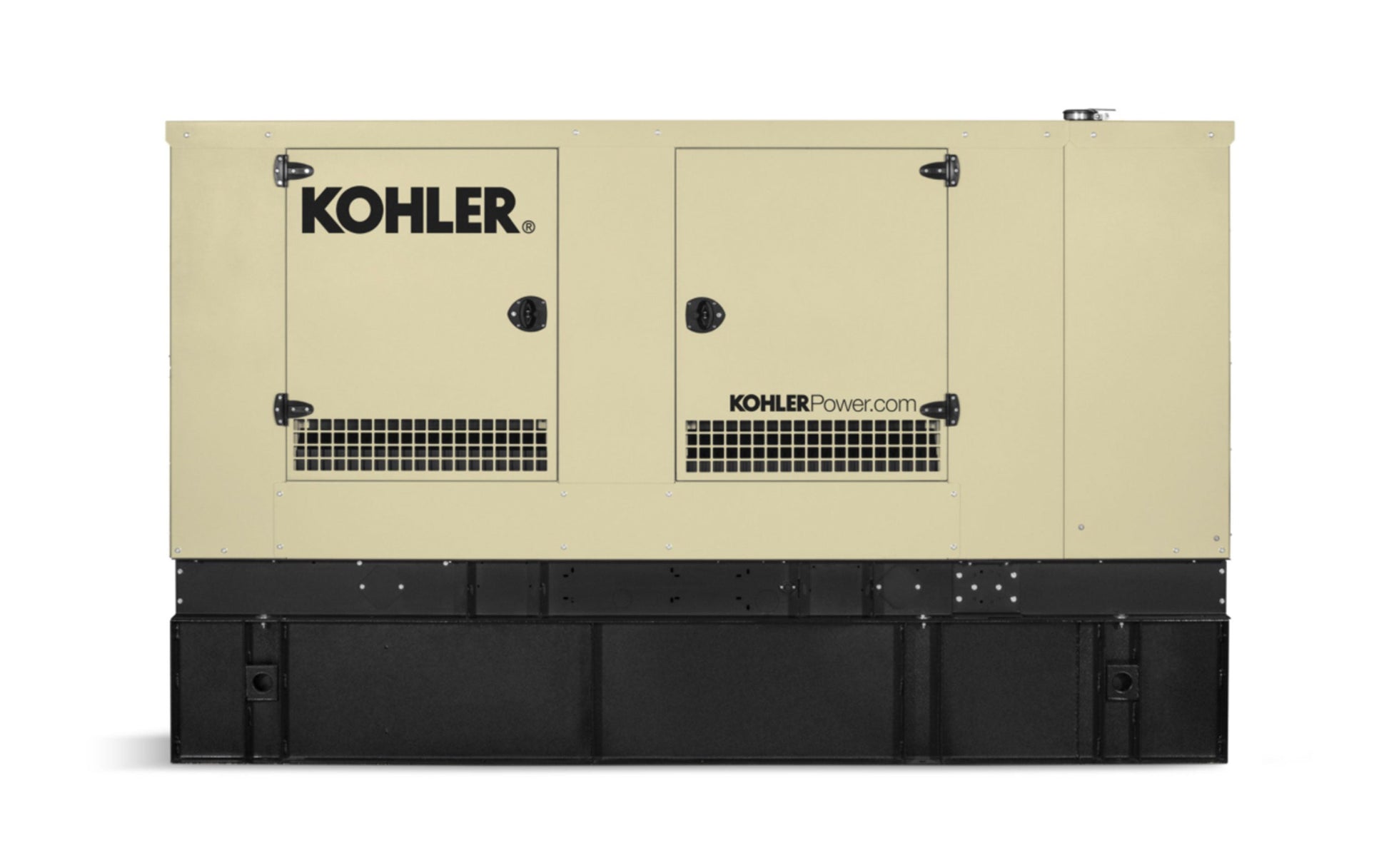

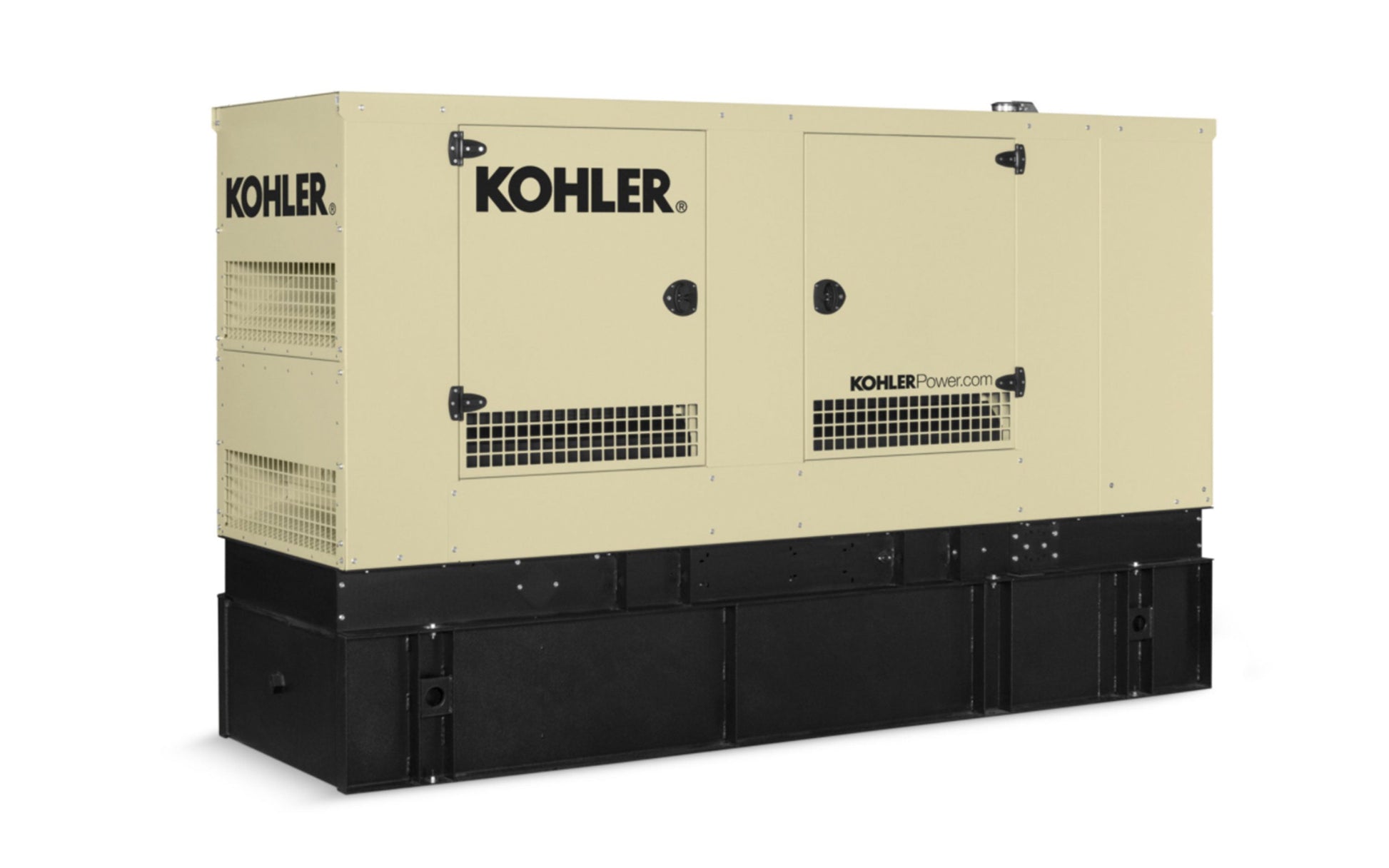

150REOZJ4, 60 Hz, Tier 4

150REOZJ4, 60 Hz, Tier 4

Fuel Type Diesel
Certification US EPA (Certified) Stationary Non-Emergency | US EPA (Certified) Stationary Emergency
Standby Range (kW/kVA) 106-154/106-192.5
Prime Range (kW/kVA) 106-139/106-174
Frequency 60 Hz
Speed 1800 RPM
Alternator Type Brushless, Rare-Earth, Permanent-Magnet
Engine Manufacturer John Deere

Fill out my online form.
View full details

STANDARD FEATURES

  • KOHLER Co. provides one-source responsibility for the generating systems and accessories
  • The generator set and its components are prototype-tested, factory-built, and production-tested
  • The 60 Hz generator set offers a UL 2200 listing
  • The 60 Hz generator set meets NFPA 110, Level 1, when equipped with the necessary accessories and installed per NFPA standards
  • A one-year limited warranty covers all systems and components. Two-, five-, and ten-year extended warranties are also available
  • Tier 4 Final EPA -Certified for Stationary Emergency and Non-Emergency Applications

OTHER FEATURES

  • Kohler designed controllers for guaranteed system integration and remote communication
  • The low coolant level shutdown prevents overheating (standard on radiator models only)
  • Durable steel-sound attenuating housing with quiet operation of 70 dB(A) log average @7 m (23 ft.) with full load at the prime rating
  • 125% environmental containment basin for oil and coolant and 110% secondary containment tank for fuel
  • UL 142 listed subbase fuel tank for 24-hour run time with full load at prime rating (minimum)
  • Customer connection panel with main circuit breaker, remote start connection, and emergency stop switch

ALTERNATOR FEATURES

  • Kohler's unique Fast-Response(TM) permanent magnet excitation system delivers excellent voltage response and short circuit capability
  • NEMA MG1, IEEE, and ANSI standards compliance for temperature rise and motor starting
  • Sustained short-circuit current of up to 300% of the rated current for up to 10 seconds and enables down stream circuit breakers to trip without collapsing the alternator field
  • Self-ventilated and drip-proof construction
  • Vacuum-impregnated windings with fungus-resistant epoxy varnish for dependability and long life
  • Superior voltage waveform from a two-thirds pitch stator and skewed rotor
