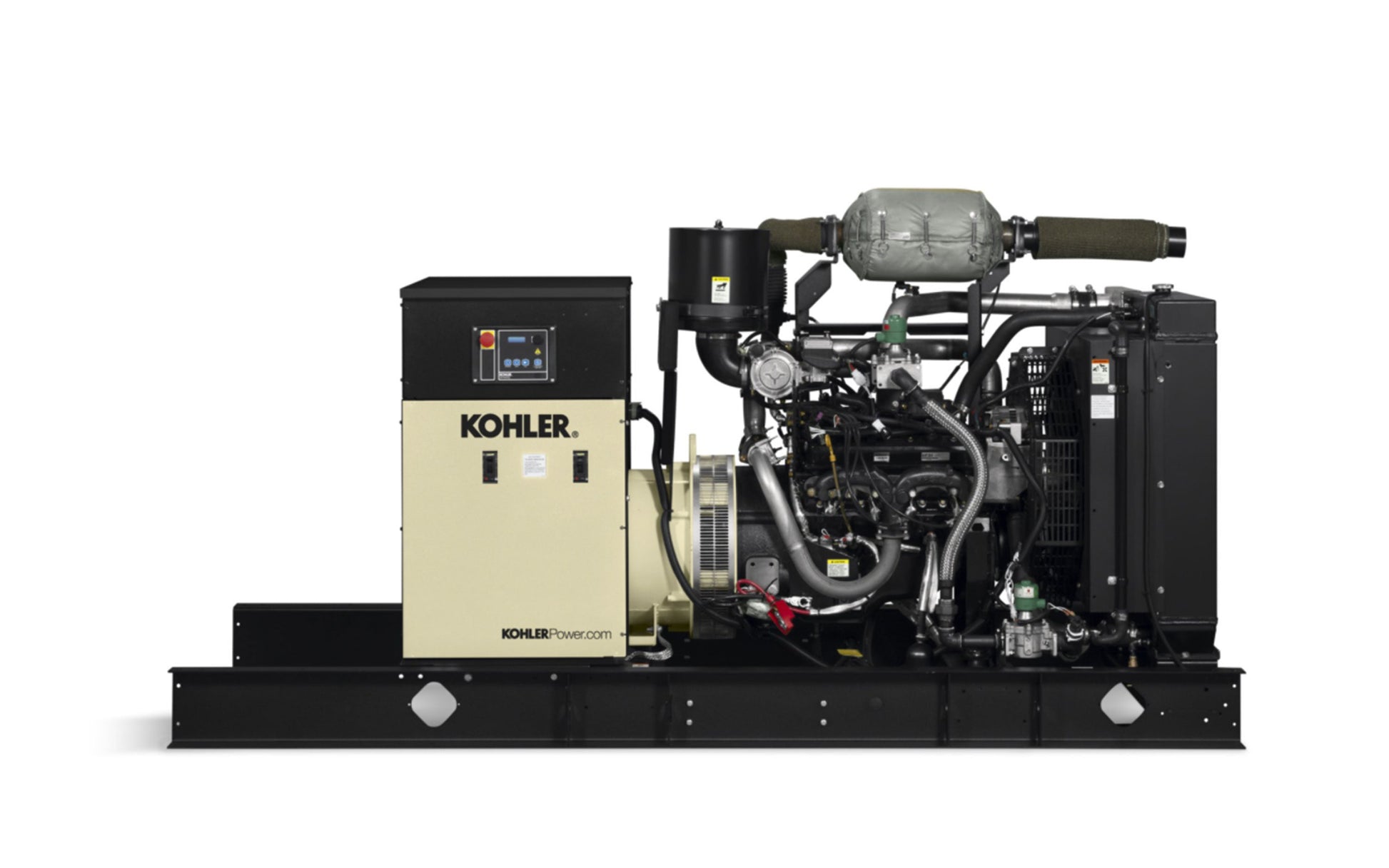

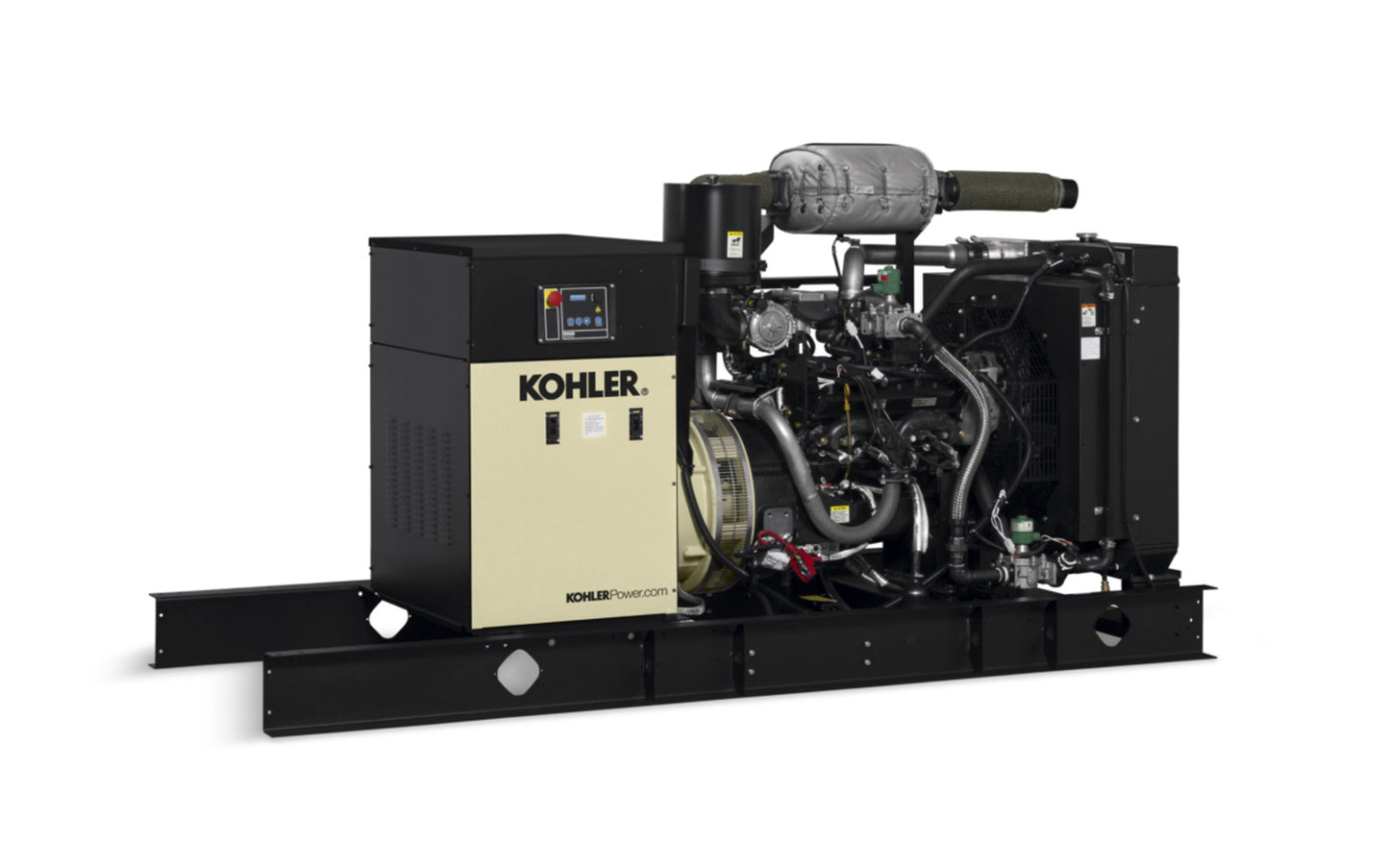

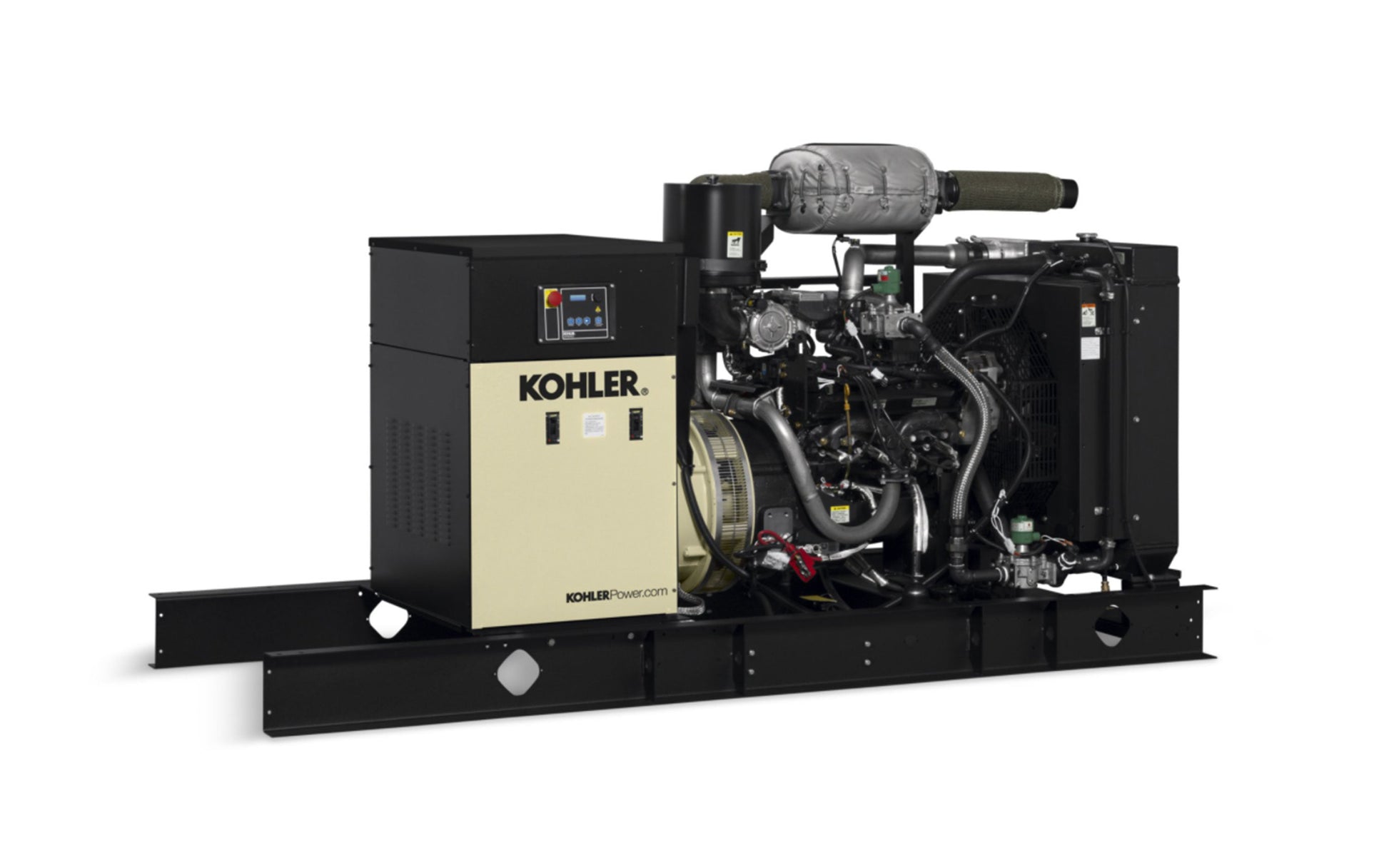

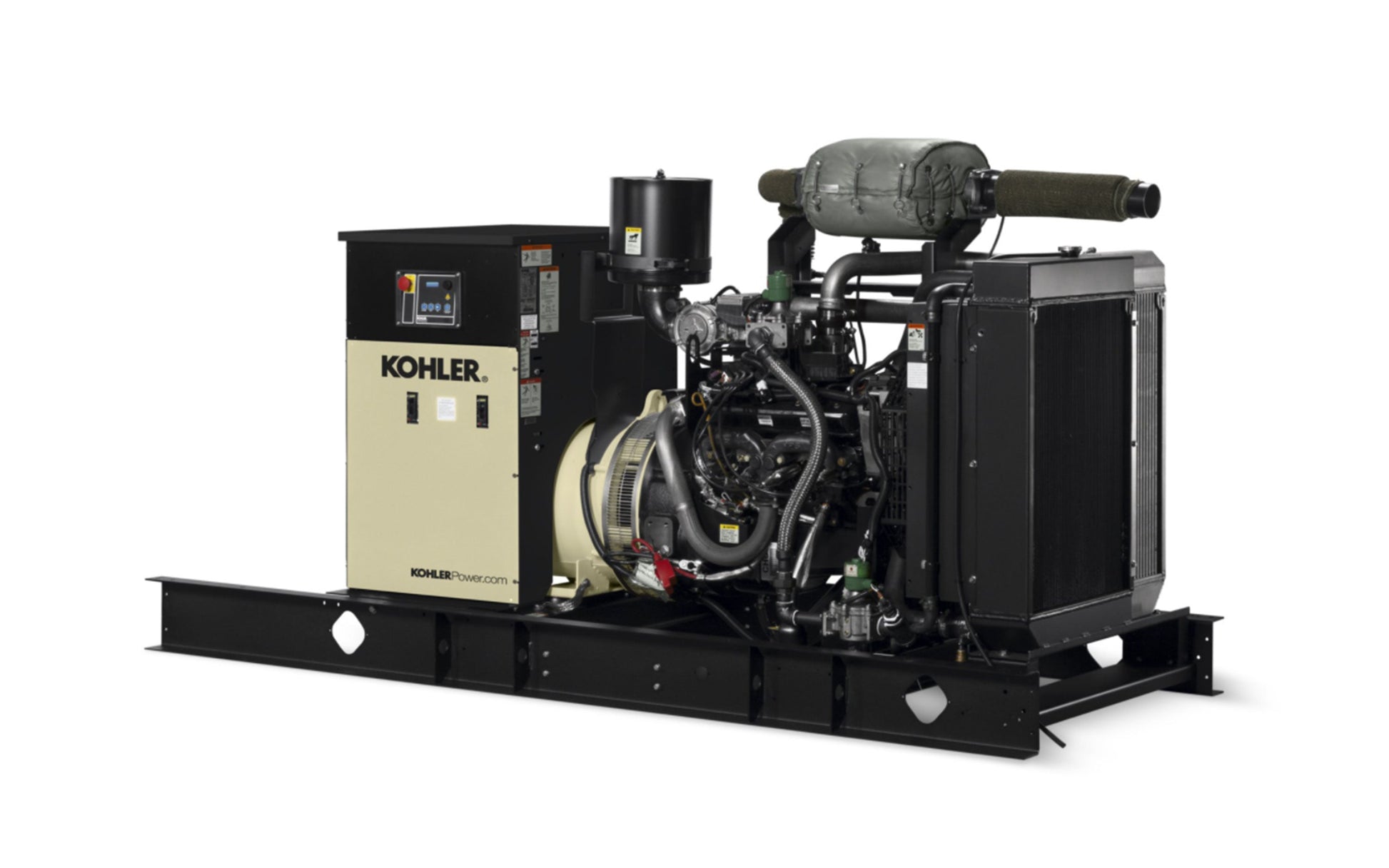

100REZGD, 60 Hz, Dual Fuel

100REZGD, 60 Hz, Dual Fuel

Fuel Type Dual Fuel
Certification US EPA (Certified) Stationary Emergency
Standby Range (kW/kVA) 77-100/77-125
Prime Range (kW/kVA) /
Frequency 60 Hz
Speed 1800 RPM
Alternator Type Brushless, Permanent-Magnet
Engine Manufacturer General Motors

Fill out my online form.
View full details

STANDARD FEATURES

  • KOHLER Co. provides one-source responsibility for the generating systems and accessories
  • The generator set and its components are prototype-tested, factory-built, and production-tested
  • The 60 Hz generator set offers a UL 2200 listing
  • A one-year limited warranty covers all systems and components. Two-, five-, and ten-year extended warranties are also available
  • The generator set accepts rated load in one step
  • The 60 Hz generator set meets NFPA 110, Level 1, when equipped with the necessary accessories and installed per NFPA standards

OTHER FEATURES

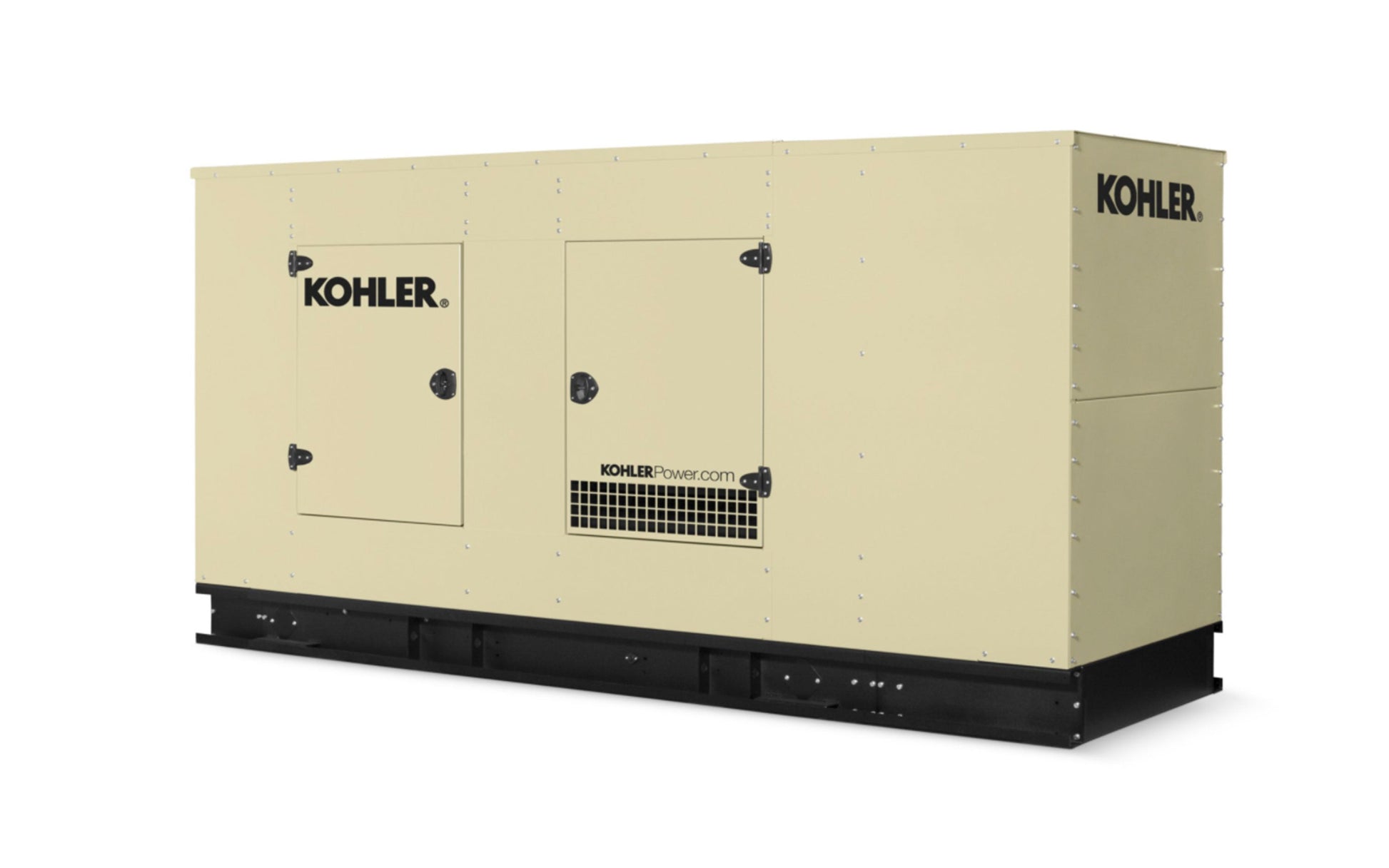

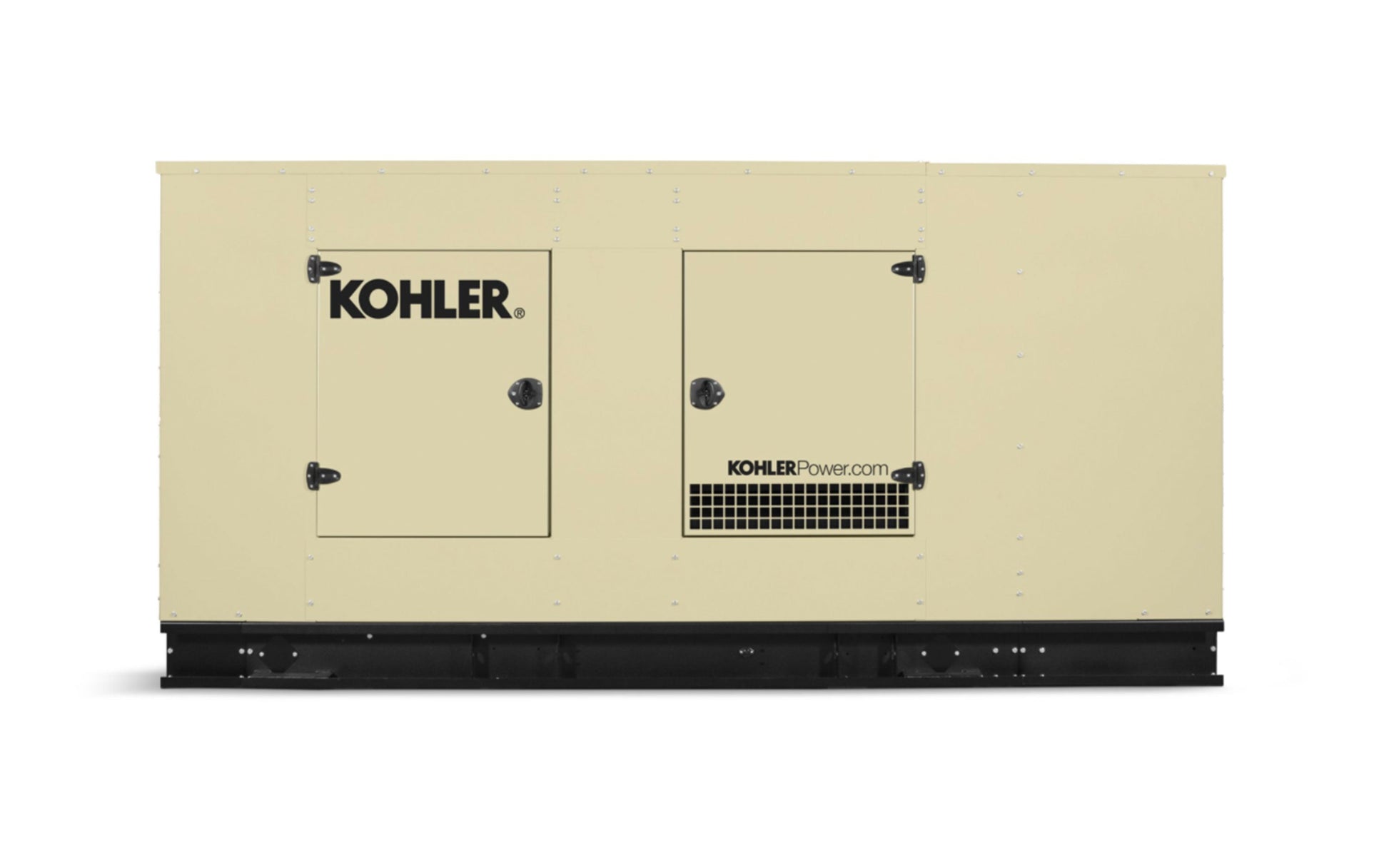

  • Hurricane-rated enclosures available
  • 186 mph wind load rating on sound aluminum enclosure

ALTERNATOR FEATURES

  • Kohler's unique Fast-Response(TM) permanent magnet excitation system delivers excellent voltage response and short circuit capability
  • NEMA MG1, IEEE, and ANSI standards compliance for temperature rise and motor starting
  • Sustained short-circuit current of up to 300% of the rated current for up to 10 seconds and enables down stream circuit breakers to trip without collapsing the alternator field
  • Self-ventilated and drip-proof construction
  • Vacuum-impregnated windings with fungus-resistant epoxy varnish for dependability and long life
  • Superior voltage waveform from a two-thirds pitch stator and skewed rotor
